    1920×1080 And 2-axis 2-frame , Standard Interface JHP103-M145C EO/IR Gimbal for Unmanned Ship

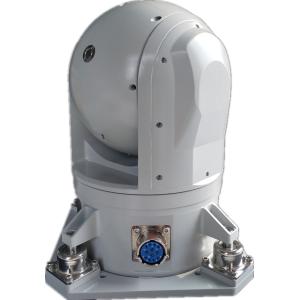

    JHP103-M145C USV Small Shipborne Photoelectric Infrared System

    Description

    A must product for small vessels, hangsome appearance, convenient installation, stable and reliable performance; sealed design, anti-salt spray corrosion appearance, built-in water channel, anti-accumulation design; standard interface, universal protocol, easy to use and high quality.

    Technical Specification

    Day Light Camera
    ModelJHP103-M145C
    CCD1/2.8 inch CMOS
    Resolution1920x1080 (1280x720, 704x576 for optional)
    Focal Length5.0mm~115mm (23x Optical Zoom)
    FOV(H)60°49'~2°85'
    Lens2.16 million pixels high definition
    FocusAuto/Semi-Auto/Manual
    Frame Frequency30Hz (25Hz for optional)
    VideoDigital Video Network Interface,
    Analog Video PAL Interface,
    could output at the same time
    CommunicationRS422
    RangingFishing boat ( 6x2.5m ):≥1Km
    Missile boat ( 34x8m):≥3Km
    Gyro Stabilization Platform
    Stabilization Accuracy0.5mrad (1σ)
    Accuracy±0.1°(1σ)
    Servo Driving System
    Rotation Range
    Azimuthn×360°Continuous
    Pitch-35°~+85°(0° is the horizontal forward)
    Maximum Angle Speed
    Azimuth≥40°/s
    Pitch≥30°/s
    Video Tracking Module
    Static Tracking Accuracy≤1 pixel
    Dynamic Tracking AccuracyBetter than 1mrad
    Tracking Speed≥2.5 FOV/s
    Minimum Tracking Contrast5%
    Environmental Specification
    Operating Temperature Range-20ºC ~ +50ºC
    Storage Temperature Range-30ºC ~ +60ºC
    Physical Specification
    Dimension (DxH)≤ Φ145mm×230mm
    Weight3.38kg ( Not included electronic cabin)
    InstallationShip Mast
