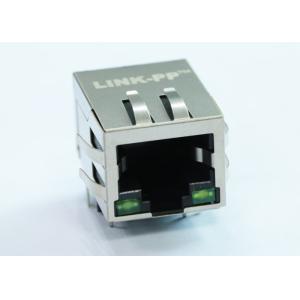

ARJM11A1-811-JJ-CW2 / ARJM11A3-811-KK-CW2 5G Base-T 1X1 Port RJ45
Modular Jack
| Part Status | Active | |
|---|
| Connector Type | RJ45 | |
|---|
| Number of Ports | 1 | |
|---|
| Number of Rows | 1 | |
|---|
| Applications | 5G Base-T, AutoMDIX | |
|---|
| Mounting Type | Through Hole | |
|---|
| Orientation | 90° Angle (Right) | |
|---|
| Termination | Solder | |
|---|
| Height Above Board | 0.535" (13.59mm) | |
|---|
| LED Color | Green, Yellow - Green, Yellow | |
|---|
| Number of Cores per Jack | 8 | |
|---|
| Shielding | Shielded, EMI Finger | |
|---|
| Features | Board Lock | |
|---|
| Tab Direction | Down | |
|---|
| Contact Material | - | |
|---|
| Contact Finish | Gold | |
|---|
| Operating Temperature | 0°C ~ 70°C | |
|---|
| Contact Finish Thickness | 6.00µin (0.152µm) |
|---|
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
Applications:
Used for networking and communication equipments such as HUB, PC
card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
