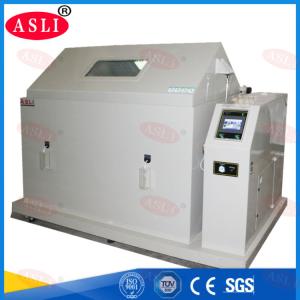

Temperature Humidity And Salt Spray Combined Test Chamber, Saline
Spray Accelerated Cyclic Corrosion Tester
Application of singleton saline spray chamber:
1. Adopt automatically or manually adding water system, can watered
by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping
naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short
storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of
±0.1°C
5. Laboratory direct steam-heated, even heating speed, reducing the
standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and
humidifying, offer humidity for testing
8. Concentration of NaCl: 5%;PH of the water:6.5-7.2 (Liquid)
Cyclic Corrosion Test Chamber Parameter:
| Model | THS-900-B |
| Internal Dimension | W900×H600×D500 mm |
| External Dimension | W3000×H1500×D1950mm |
| Cabinet capacity | 270L |
| Controlled parameters | Temperature , relative humidity, Salt fog |
| Drying temp. range | Ambient to +75 deg C |
| Humidity temp. range | Ambient to +60 deg C |
| Humidity range | 20% to 98% R.H adjustable(Temp.60deg C ~ 70deg C) |
| Salt fog fallout rates | rates adjustable from 0.5 to 2.5ml per 80cm2 per hour |
| Chamber material | P.V.C rigid plastic boar |
| Spraying method | Continuous and Programmable spray type |
| Temperature Rising/Falling Speed Rate: | From R.T. ( 25 Deg C) ~ 75 Deg C, needs about 30 mins, ( approx.
2.0 Deg C /min) From 70 Deg C ~ 30 Deg C, needs about 40 mins, ( approx. 1.0 Deg C
/min) |
Control System
1. Imported LCD touch screen programmable temperature humidity
controller, with high contrast backlight function
2.Fixed conditions or programmable condition can be set freely .
Fixed Condition time setting range : 0 - 999 H 59 MIN .
3.Under programmable mode,100 group different formula can be set
simultaneously, any part from any group can execute cycling test.
4.Each step running time (99 hr 59 min), Max.can do 999 times
cycle.
5. With power off memory device, reply message to continue with the
rest of the program.
6.The control unit has the functions of multiples segment program
editing, and of quick or slope control of temperature and humidity.
7.With TIMER SIGNAL OUTPUT RELAY
8.Temperature sensor adopt DIN PT-100Ω
9. Temperature sensor adopt DIN PT-100Ω .
Pictures for reference:
