2D Scan Engine CMOS Qr Code Scanning Engine Mini Barcode Scanner
Module

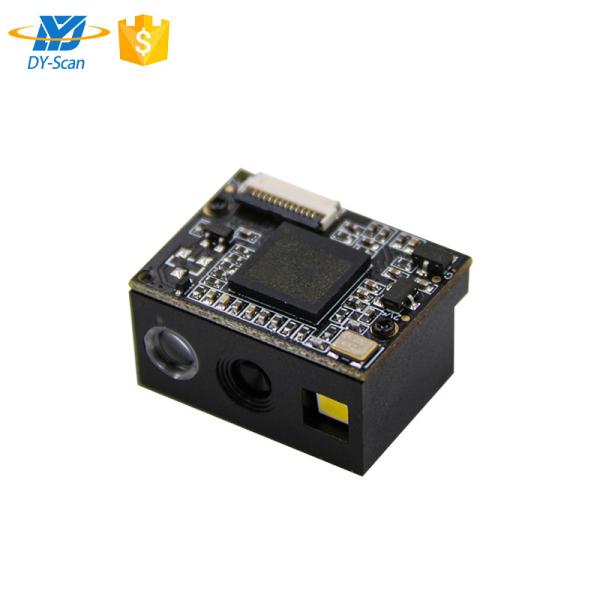

DE2110 is a practical embedded barcode scanner module with leading CMOS
image recognition technology and intelligent image recognition
system. It can scan universal 1D 2D codes, support USB, TTL
multiple interfaces, read the paper, goods, screens, other media
barcodes. Easily embedded in a variety of OEM products handheld,
portable, fixed and barcode collector, etc.
Features
☆ Mini size, widely used in wireless machine, self-service
terminal.
☆ Read all mainstream 1D 2D barcodes in the market easily. (4mil)
☆ Support USB barcode information transmission. ( languages
customization)
☆ High brightness, dark environment scanning, low power
consumption.
☆ Interface: USB, TTL.
☆ Support multiple systems and languages, secondary development.
Performance
| Scan Type | CMOS |
| Light Source | Red Light LED 625±10nm(aim), 5600K LEDs( Lighting) |
| CPU | 32-bit |
| Resolution | 640*480 |
| Reading precision | ≥4mil/0.1mm(PCS90%,Code 39) |
| Decoding speed | 25CM/S |
| Depth of field | 10mm-500mm |
| Scan Mode | Manual ,Continuous, Auto Sense |
| Scan angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% |
| Pitch:±65° |
| Roll: ±360° |
| Skew: ±60° |
| Print Contrast Signal | ≥25% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies | 1D: UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128,
Code 39,Code 93,Code 32, Code 11, Interleaved 2 of 5,Matrix 2 of
5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI
Plessey,GS1-Databar(RSS),Itf-14,etc. 2D: QR Code, Data Matrix, PDF 417, Aztec Code, Maxicode, Hanxin.
etc. |
Physical Parameter
| Weight | <6g |
| Dimension | (L)16.0mm * (W)21.4mm *(H)12.0mm |
| Communication Mode | USB(USB-KBW,USB-COM),TTL |
| Interface Type | FFC 12PIN Pitch 0.5 |
| Power Supply | DC 3.3V@160mA(Max),100ma(work) |
Environmental
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.2m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport vibration Test | 10H@125RPM |
FAQ:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode
scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend
machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested
1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing.
Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box,
user manual. And we have our own technical team to support ODM
service.
