    Small Type Roof Panel Roll Forming Machine, Galvanized Sheet Metal Roof Making Machine

    Ask Lasest Price
    Brand Name : BMS
    Model Number : YX15-900
    Certification : SGS/CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 60sets
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Small Type Roof Panel Roll Forming Machine, Galvanized Sheet Metal Roof Making Machine

    Small Type Roof Panel Roll Forming Machine, Galvanized Sheet Metal Roof Making Machine

    Description

    The Q900A small metal roofing machine can roll metal roofing and is widely used in modern buildings.

    The roll forming machine has a novel appearance, smooth surface, uniform wave height, high use and automation, low cost, and durability.

    Speed (including press cut): 12-15m / min or 15-18m / min optional

    We can also provide customized machines.


    Process Flow for Metal Roof Making Machine

    Uncoiler --- Feeding ---Roll Forming --- Pressing & Cutting --- stacker / Out Table


    Machine configurations
    (1) Hydraulic decoiler (5T) with coil car --------------------------- 1 unit
    (2)Main Roll Forming Machine -------------------------------------- 1 unit
    (3) Cutting Device ------------------------------------------------------ 1 unit
    (4) Auto stacker --------------------------------------------------------- 1 unit
    (9) Electrical System with PLC Control --------------------------- 1 unit
    (10) Hydraulic System ------------------------------------------------ 1 unit


    Application

    The finished products are widely used in modern buildings such as airports, parking lots, stadiums, exhibition halls, and theatres.


    Material Width1000mm
    Rolling Speed12-15m/min
    (product length automatic control)
    Rolling Thickness

    0.3-0.6mm (235Mpa)
    (Galvanized Sheet)

    Control SystemPLC (Siemens or Schneider)
    Roller StationsAbout 9 stations
    Diameter of Shaft45#steel
    Motor PowerMain Power: 5.5KW
    Hydraulic power: 3KW
    Way Of DriveBy chain, one complete chain

    Profile Drawing

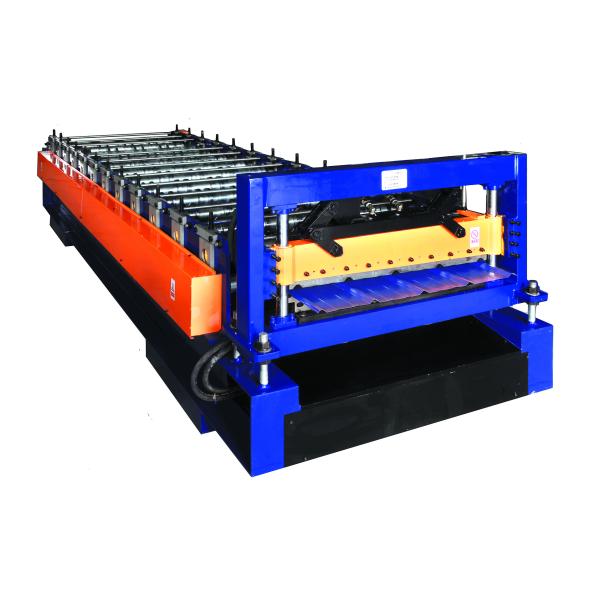

    Quality Small Type Roof Panel Roll Forming Machine, Galvanized Sheet Metal Roof Making Machine for sale
