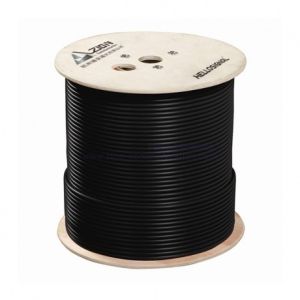

PK75-3-316 нг( А ) - HF BC 65% TCCA LSZH Coax Cable For Security Cameras

Ask Lasest Price
Brand Name :	hellosignal
Model Number :	PK75
Certification :	UL, ETL, CE,CPR, RoHS
Price :	HANGZHOU ZION COMMUNICATION CO.,LTD
Payment Terms :	T/T, L/C, D/P
Supply Ability :	3000KM / Month
Delivery Time :	Normally 25 working days

Add to Cart

PK75-3-316 нг(А)-HF BC 65% TCCA LSZH 75 Ohm CCTV coaxial Cable NO.7100355



Construction Parameters:
Inner Conductor		7* 0.008"/7* 0.2mm/7* 32 AWG BC
Dielectric		0.144"/2.70mm FPE
Shield 1		Al/PET Foil
Shield 2		0.12mmTCCA(65%)
Jacket		0.170"±0.006"/4.50±0.30mmLSZH
Jacket Thickness		0.032"/0.81mm
Application		For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance		The Max. at 20c shall be < 63 Ω/km

Capacitance		56.5±1 pF/m
Impedance		75±5 Ω
Return loss		between 5 and 1000MHz: > 20dB
Velocity of Propagation		0.82
Sparker Test (VAC)

Mechanical and Envrionmental Properties
Cable bend radius		10 times the cable diameter
Operating Temp Range		-20 ℃ to 60℃
Cable diamensions		0.130"±0.006"/3.30±0.30mm LSZH

Cross Section














Attenuation(20℃):
Frequency (MHZ)		Max Attenuation(dB/100m)
10		3.36
50		7.05
200		14.30
470		22.50
862		30.30
1000		32.80
1350		39.40
1750		45.20
2150		50.40
2400		53.50
Order Informations:
Marking		HELLOSIGNAL PK75-3-316 нг(А)-HF BC 65% TCCA LSZH CCTV COAXIAL CABLE 7100355 ×××M/FT
Package		Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time		Normally 25 days after received the deposit.
Brand		HELLOSIGNAL^® OR OEM
