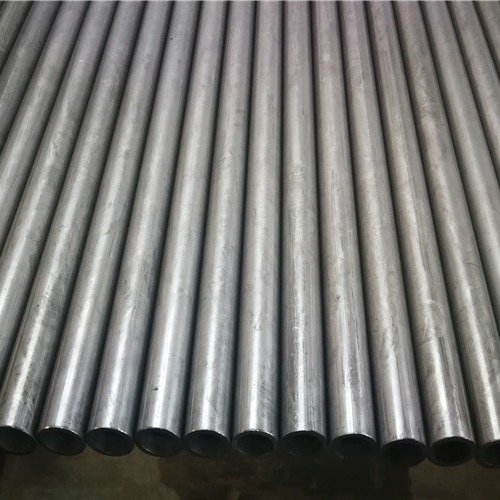

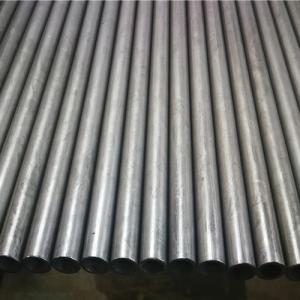

High Precision Cold Drawn Welded Steel Tube For Precision Machinery
Equipments
Description:
High precision cold drawn welded steel tubes are essential for
precision machinery equipment, offering exceptional dimensional
accuracy and strength. These tubes undergo a meticulous cold
drawing process, enhancing their mechanical properties and surface
finish. Their welds are expertly crafted to ensure durability and
reliability under high stress. Ideal for applications requiring
tight tolerances, they provide excellent performance in various
industries. With resistance to corrosion and fatigue, these tubes
are vital for enhancing the efficiency and longevity of precision
machinery.
Typical Specification:
| Grade | Welding Typical Specification | Yield Strength |
| 3 | E355 | Φ38×4.5 | 355～450Mpa |
Chemical Component:
| Steel Number | Quality Level | Thickness/mm | Deoxidize Method | C(%)≤ | Si(%)≤ | Mn(%)≤ | P(%)≤ | S(%)≤ |
| E185(Fe310) | 0 | - | - | - | - | - | - | - |
| E235(Fe360) | A
B
C
D | ≤16
＞16-25
≤40
＞40
| N
-
-
E
NE
NE
GF | 0.22
0.17
0.20
0.17
0.20
0.17
0.17 | -
0.40
0.40
0.40
0.40
0.40
0.40 | -
1.40
1.40
1.40
1.40
1.40
1.40 | 0.050
0.045
0.045
0.045
0.045
0.040
0.035 | 0.050
0.045
0.045
0.045
0.045
0.040
0.035 |
| E275(Fe430) | A
B
C
D | ≤40
＞40 | -
E
NE
NE
GF | 0.24
0.21
0.22
0.20
0.20 | -
0.40
0.40
0.40
0.40 | -
1.50
1.50
1.50
1.50 | 0.050
0.045
0.045
0.040
0.035 | 0.050
0.045
0.045
0.040
0.035 |
| E355(Fe510) | C
D | ≤30
＞30
≤30
＞30 | NE
NE
GF
GF | 0.20
0.22
0.20
0.22 | 0.55
0.55
0.55
0.55 | 1.60
1.60
1.60
1.60 | 0.040
0.040
0.035
0.035 | 0.040
0.040
0.035
0.035 |
Stength Yield:
| Steel Number | Yield Strengh/MPa |
| ≤16 | ＞16-40 | ＞40-63 | ＞63-80 | ＞80-100 | ＞100-150 | ＞150-200 |
| E185(Fe310) | - | 185 | 175 | - | - | - | - | - |
| E235(Fe360) | A
B
BNF
C
D | 235
235
235
235
235 | 225
225
225
225
225 | 215
-
215
215
215 | 215
-
215
215
215 | 215
-
215
215
215 | 195
-
195
195
195 | 185
-
185
185
185 |
| E275(Fe430) | A
B
C
D | 275
275
275
275 | 265
265
265
265 | 255
255
255
255 | 245
245
245
245 | 235
235
235
235 | 225
225
225
225 | 215
215
215
215 |
| E355(Fe510) | C
D | 355
355 | 345
345 | 335
335 | 325
325 | 315
315 | 295
295 | 285
285 |
Delivery Condition:
1) +C No heat treatment after the final cold drawing process.
2) +LC After the final heat treatment there is a suitable drawing
pass.
3) +SR After the final cold drawing process there is a stress
relieve heat treatment in a controlled atmosphere.
4) +A After the final cold drawing process the tubes are annealed
in a controlled atmosphere.
5) +N After the final cold drawing operation the tubes are
normalized in a controlled atmosphere.
Standard:
EN10305-2, EN10305-3 or as requested
Material:
E215, E235, E355, 26MnB5, 34MnB5 etc (including low carbon alloy
steel)
Diameter Range:
10-89mm
Wall Thickness Range:
0.5-10mm
Application:
Automor, e.g. hollow stablilzer bar, drive shaft tubes, steering
tube, shock absorber tube, camshaft pipe, etc. And precision
machinery equipments etc.
Annual Output:
20000MT
Advantage:
SG/76 Enhanced High-precise High Frequency Welding Tube Production
Line. Edge milling technology from Germany, Small outer diameter
and thick wall thickness technology from YODE U.S.A. The welding
machine from EFD, Norway and internal burr scrapping device from
Germany. The main productions are welding tubes of small outer
diameter (D) and thick wall thickness(t): t/D≥0.2. The products are
of high size precision and good quality of welding line, as well as
good internal burr scrapping effects.
