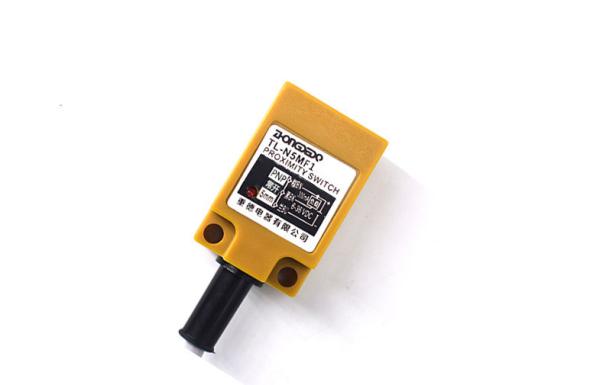

PNP Inductive Proximity Switch , Miniature Inductive Proximity Sensor

    Buy cheap PNP Inductive Proximity Switch , Miniature Inductive Proximity Sensor from wholesalers

    Buy cheap PNP Inductive Proximity Switch , Miniature Inductive Proximity Sensor from wholesalers
    • Buy cheap PNP Inductive Proximity Switch , Miniature Inductive Proximity Sensor from wholesalers
    • Buy cheap PNP Inductive Proximity Switch , Miniature Inductive Proximity Sensor from wholesalers

    PNP Inductive Proximity Switch , Miniature Inductive Proximity Sensor

    Ask Lasest Price
    Model Number : TL-N5MF1
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000only 8day
    Brand Name : Zhongde
    Certification : CE
    • Product Details
    • Company Profile

    PNP Inductive Proximity Switch , Miniature Inductive Proximity Sensor

    PNP Inductive Proximity Switch , Miniature Inductive Proximity Sensor


    Description

    With extended sensing range, quality construction and very high noise immunity, our inductive proximity switch is the ideal choice for even the most demanding inductive sensing applications.

    Three-wire PNP normally open DC


    Parameter

    Lag distanceLess than 10% of the detection distance
    Detecting objectsMagnetic metal (detection distance is reduced when non-magnetic metal)
    voltageDC : DC 12~24 (6~36V) pulse (p-p) below 10%
    AC : AC 110~220V (36~250V) 50/60Hz
    Current consumptionN.P : ≤13mA
    D : ≤0.8mA
    A : ≤1.7mA
    Control outputN.P : ≤300mA
    D : ≤200mA
    A : ≤400mA
    Loop protectionN.P.D : reverse connection protection, surge absorption, load short circuit protection
    A : surge absorption
    Ambient temperature-30~+65°C (no icing, no condensation)
    Ambient humidity-35~95%RH
    Insulation resistance50MΩ or more (DC500 megohmmeter) (between charging part and housing)
    Withstand voltageAC 1000V 50/60HZ 1min (between charging part and Housing)
    Temperature effect-30~+65°C: detection distance error ±15% at +23°C
    -25~+60°C: detection distance error ±10% at +23°C
    Voltage effect6-36V (90-250V) : ±15% of detection distance error
    10-30V (220V) : ±10% of detection distance error
    Protection levelIP67 (IEC)
    MaterialHousing: ABS
    Detection surface: ABS

    Note:Please read the "Precautions" of the product manual before use.
