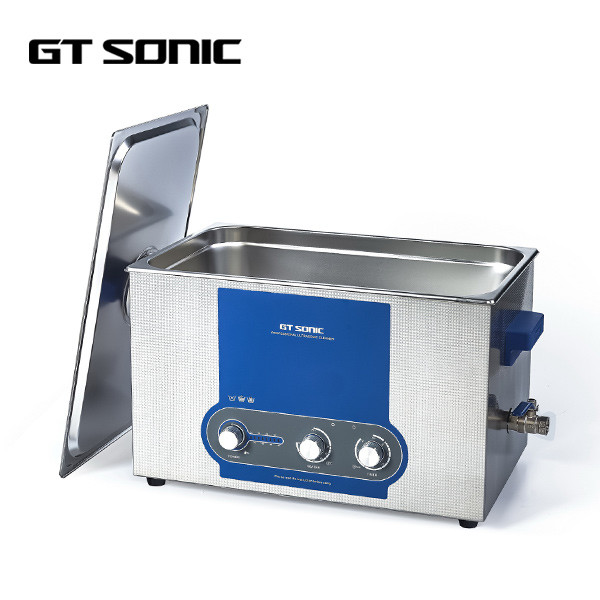

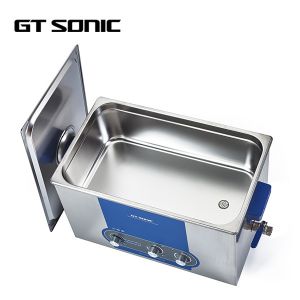

Stainless Steel Ultrasonic Cleaner Manual Ultrasonic Cleaner for
Repair Shops 20L 120-400W
GT SONIC-P series stainless steel Ultrasonic cleaners are the upgraded version of the QT series, with new design panel
and adjustable power from 30% to 100%. Optimized power regulation
for special cleaning. P series comprises 8 tank sizes from 2 liters
to 27 liters.
Features:
1. Power adjustable from 30% to 100% for different items cleaning.
(from 3L and above)
2. With mechanical control timer and heater.
3. The tank is made of SUS304 stainless steel.
4. Stamping tank without welding gap for better waterproof.
5. Powerful Ultrasonic transducer for efficiency and cleaning
effect.
6. Ceramic heaters for better heating effect.
7. Drainage and cool fan are available for 6L and above volume
models, convenient to use.
8. Special cooling system, components working more steady.
9. Moisture-proofed and anti-corrosion PCB, suitable for different
working environments.
Specifications:
| Model | Tank size | Unit size | Volume | Ultrasonic power | Ultrasonic frequency | Heating power | Timer | Heating temperature |
| L×W×H(mm) | L×W×H(mm) | (L) | Normal (W) | (kHz) | (W) | (MIN) | (℃) |
| GT SONIC-P2 | 150×140×100 | 190×170×220 | 2 | 50 | 40
| 100 | 0-30 | 20-80 |
| GT SONIC-P3 | 240×140×100 | 270×170×240 | 3 | 30-100 | 100 | 0-30 | 20-80 |
| GT SONIC-P6 | 300×155×150 | 330×180×310 | 6 | 45-150 | 300 | 0-30 | 20-80 |
| GT SONIC-P9 | 300×240×150 | 330×270×310 | 9 | 60-200 | 300 | 0-30 | 20-80 |
| GT SONIC-P13 | 330×300×150 | 360×330×310 | 13 | 60-300 | 400 | 0-30 | 20-80 |
| GT SONIC-P20 | 500×300×150 | 550×330×310 | 20 | 120-400 | 500 | 0-30 | 20-80 |
| GT SONIC-P27 | 500×300×200 | 550×330×360 | 27 | 150-500 | 500 | 0-30 | 20-80 |
Applications:
GT SONIC-P series stainless steel Ultrasonic cleaners are suitable for industries like
Aerospace, Marine, Railway, Automotive, Food and Beverage industry,
Mining enterprise, Medical Devices, Moulding, Electronic industry
(PCB, clock parts, etc), Pharmaceutical Industry, use for the
cleaning of Pneumatic Tools, Grinding and Polishing Shops, Optical
and Glass Industry, Transport Technology and Precision Mechanics.
Our Company:
1. Established in 2007, go public in 2015, stock code is 832018.
2. More than 10 years of manufacturing experience in the Ultrasonic
field, awarded as a National High-tech Enterprise.
3. 40,000 square meters of an Ultrasonic industrial park, produce
one million units of over 200 different models per year.
4. Domestic top R&D center leading by 6 national experts and 40
engineers.
5. Obtained more than 70 patents, completed countless ODM projects
for many world-class companies.
Certificates:
Company certificates: ISO:9001 and 14001.
Products certificates: CE, FCC, ROHS, GS, PSE, etc.
FAQ:
1. What is De-gassing?
De-gassing is the removal of dissolved oxygen trapped in a liquid.
In Ultrasonic cleaning systems, using the degas mode speeds up air
release throughout the tank, thereby improving Ultrasonic cleaning
efficiency.
2. Do I have to fill my tank to the "MAX" line?
YES! Your Ultrasonic cleaner's manufacturer designed the unit to
work best when filled to that “ MAX” line. If underfilled, the
characteristics of the environment change, which could result in
improper Ultrasonic transmission, which in turn could result in
poor cleaning performance or damage to the unit. Units with a
heater are especially at risk of damage due to underfilling. Drying
running will damage heating elements and tank.
3. How Long Should an Ultrasonic Cleaning Cycle Be?
There is no set amount of time or “typical” cleaning cycle. How
dirt the part is, the temperature of the tank, how clean the part
is to be, and the condition of the Ultrasonic cleaning solution all
contribute to the length of the cleaning cycle.
Generally, for 2-27L machine suggest the machine not continuously
running for 30 minutes, please stop at least 20 minutes before a
new running cycle. If you need a long time continuously running, an
industrial series Ultrasonic cleaner can be approved.
Detailed Pictures:
