Item NO | Tank size | Unit size | Volume | Ultrasonic power | Ultrasonic frequency | Heating power | Heating temperature |
| L×W×H(mm) | L×W×H(mm) | (L) | (W) | (kHz) | (W) | (℃) |
| GT SONIC ST13A/B | 300*240*180 | 400*360*450 | 13 | 300 | 28&40 | 500 | 20-80 |
| GT SONIC ST36A/B | 510*300*250 | 570*360*450 | 36 | 600 | 28&40 | 800 | 20-80 |
Functional Character:

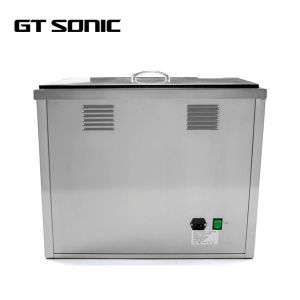

GT SONIC ST Series Ultrasonic Cleaner introduces advanced overseas
technology. It could produce the Ultrasonic frequency electrical
signal through the Ultrasonic generator, then transform into the
mechanical vibrations of the same frequency by transducer's
piezoelectricity inversion effect, intensive forward spread in the
way of Ultrasonic frequency longitudinal wave at the cleaning
liquid. And it produces ten thousand of small bubbles circle
"blasting" to clean the goods, form a tiny high pressure bombarding
in surfaces, cracks, small holes of the goods to get rid of dirt
rapidly, so that achieve the purpose of purification. It could deep
clean the surface of the deep hole, blind hole, convex in high
efficiency and high precision. It is totally made of stainless
steel, and it has a water level automatic alarm system, which could
not work without reaching the normal water level.
Application Range:
The machine applies to hospitals, medical schools, research,
petroleum, chemical industry, light industry, metallurgy,
machinery, transportation and defense industries. As equipment,
instruments, electronic components, circuit boards, semiconductor
silicon, the material the electroplated parts, metal pieces,
optical lenses and spare parts, audio slider, polyester filters,
spinneret, the latex mold, medical equipment, glassware, gems and
jewelry, watch components, precision metal pieces, bearing glib
manufacture of pumps and mechanical parts and components to reduce
the complexity of geometry and clean.
