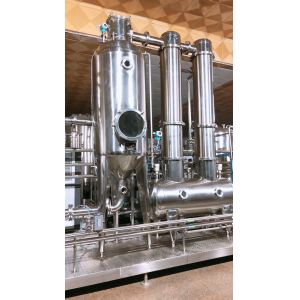

Sanitary Herb Extraction Equipment Plant Extraction Concentration
Pilot Machine
Application :
This herb extractor is suitable for extracting component from herbs
(leaves, root, flower or seed)like licorice, stevia, senna and so
on and other botanical.It also can realize the solvent recovery and
the essential oil collection and it is especially suitable for
hospital, pharmaceutical factory, scientific research etc.

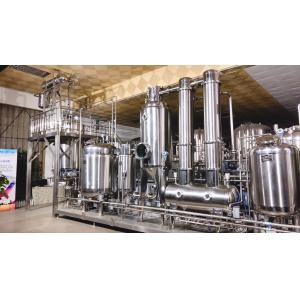

This herb extractor and evaporator include heater, evaporator,
filter, recycle tank, extractor, condenser, cooler, pipes, valves,
meters, water-oil separator, filter, vacuum pump, transfer pump and
control box and so on.
First you put the herb (leaves, root, flower or seed )into
extractor,
add water or other solvent( like alcohol) into extractor. Then heat
the extractor, the component from herb will dissolved into water or
solvent, after extraction, then pump the extracted liquid into the
evaporator, evaporate the water or solvent( like alcohol) which
will be cooled by condenser and flow to recycle tank , the solvent
can be used again next time. the component in evaporator will
became into cream or liquid which you need.
Character:
1. It is new type equipment at present, this equipment is specially
suitable for medium pharmaceutical factory or big pharmaceutical
factory, hospital, academe and so on.
2 save time: the extracting and concentration can be operated at
the same time, so it save much time, before the concentration
should be operated after extraction.
3 save energy: the steam from evaporator can heat the extractor
directly so we can save 30% steam, so one year you can save money
from steam which can buy one machine again.
4 the extraction or concentration can be operated under vacuum, if
the herb is sensitive to high temperature, so it can be operated
under vacuum, so the herb can not be burned by high temperature,
second the solvent can be evaporating under lower temperature if
the machine is working under vacuum, so it will save time and
energy too.
5 all the machine have not dead corner, so it is good to clean and
it is according GMP standard.
6 all surface of the machine is mirror polished, so it is looks
very beautiful.
7 the temperature can be adjusted, you can adjust the temperature
according to your requirement, for example you want to heat the
machine 100degree, you just set the temperature 100degree, the
heating can be stop when the temperature is 100degree, if it is
lower 96degree, it can be heating again.
Main Technical Data:
| Manufacturer | China LTPM Group Co., LTD |
| PN | 5L vacuum emulsifying mixer |
| Capacity | Design volume: 6L, working capacity:5 L |
| Kettle Cover | Liquid(particle)inlet, sunk material inlet, air inlet with filter,
inspect light and sight glass, vacuum port, pressure meter(1 to
-0.1 bar), pressure clamp |
Mixing pot |
Material | Inner layer: SUS316L thickness: 3mm |
| Middle layer: SUS304 thickness: 2mm |
| Outside layer: SUS304 thickness:2mm |
configuration | Bottom material exhaust, size: 1.5” |
| Temp. sensor (0-199℃) |
| Electrical heating: 2kw, cooling water inlet |
Stirring system |
Homogenizer | 1.Material: SUS316L; standard homogenizer 2. Power: 1.1 kw/380/50Hz; RPM: 0--2800R/Min |
| Stirring scrap and middle stirring | Material: SUS316L,Scrap material: PTFE |
1. Stirring scrap and middle stirring use the same motor 2,Power:0.75 kw/380V/50Hz;RPM:0~86r/min(Frequency control) 3. Stirring scrap and middle stirring rotating the opposite
direction |
| Safety: 1. During stirring, the cover can not open, 2. Cover lift
can not stirring. |
| Vacuum system | 1. Vacuum pump: water recycle, power 0.37kw/380V/50Hz 2. With pressure sensor (during vacuum condition, hydraulic can not
open) |
| Heating method | Jacket electrical heating |
| Exhaust method | Electric doom and bottom discharge or positive pressure discharge
material |
| Pressure | Pressure in the pot during working: -0.090 Mpa; Jacket working
pressure:0.2 Mpa |
| Control box | SUS304 , 1.2mm thickness |
| Dimension | 1400mm×600mm×1900~2400 mm |
| Shelf is SS, platform with raised platform and SS guardrail |
| Spare parts | One year spare parts and tools |
| Guarantee | One year |
| Using life | More than 15 years |
Oil pot | Design volume | 3.35L |
| Working capacity | 2.7L |
| Stirring power | 0.025kw |
| Stirring speed | 1400 RPM |
| Heating power | 1 Kw |
Water pot | Design volume | 3.35L |
| Working capacity | 2.7L |
| Stirring power | 0.025kw |
| Stirring speed | 1400 RPM |
| Heating power | 1 Kw |
