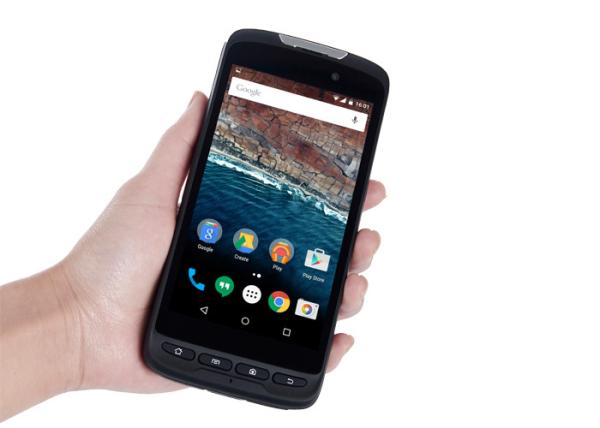

Handheld Logistic Pda Handheld Computer With Barcode Scanner
Handheld Pda Devices BH52
5.0 inch IP65 android pda scanner,Corning Gorilla glass touch panel
and double injection mould housing sealed completely for better
protection,MTK Quad core CPU and Android 8.1 OS,2.4/5.8G WIFI,BT
4.0 and 2G/3G/LTE for data transfer,with 2.0M front camera and 8.0M
rear one for face recognition,the most important with 4000mah big
battery for long time working,we also have hand strap as standard
accessories,Now our customers they mainly use the devices in
warehouse management,retails etc
| Product Outlook |
| Type | Details | Standard Configuration |
| Product Form | Type | Rugged handheld Terminal |
| Dimension | 155.8*72*25 |
| Weight | Device unit: g ,Unit with giftbox and standard
accessories:g,Docking:g |
| Device Color | black+black color(bottom shell : black color, front shell: black
color ) |
| LCD | Screen Size | 5.0 inch 16:9 |
| Resolution | 720*1280 IPS |
| Brightness | 300Nit |
| TP | Touch Panel | 5points Capacitive,G+F,,Rigidity: above 7H-Anti-scratch,TP
thickness:1.1mm,COF,support handwrite |
| Camera | Front | Front2.0MP |
| Rear | Rear 8.0MP,with flash and auto-focus |
| Speaker | Built-in | Embedded 8Ω/0.7W speaker x 1 |
| Mic | Built-in | Sensitivity:-42db, output resistance2.2kΩ |
| Earphone | Built-in | built inx 1 |
| Battery | type | Li_polyment,battery loadable |
| Capacity | 3.8V/4000mAh |
| Endurance | 7hrs |
| System Hardware Configuration |
| Type | Details | Descriptions |
| CPU | Type | MT8735b(4core) |
| Speed | 1.1GHz |
| GPU | Type | ARM MaliT720-MP3 450MHz |
| RAM | DDR3L | 2GB/ LPDDR3 |
| ROM | Emmc | 16GB |
| Compass | Built-in | electronic compass |
| G_sensor | Built-in | Gravity acceleration sensor |
| Light sensor | Built-in | yes |
| range sensor | Built-in | yes |
| led indicate | Built-in | In charging led |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI | WIFI 802.11(a/b/g/n) Frequency 2.4G+5.8G dual band WIFI, |
| Bluetooth | Built-in | BT4.0(BLE) class1transmission distance:10m |
| 3G/4G | Built-in | CMCC 5M:
LTE 1/2/3/4/7/17/20/38/39/40/41
WCDMA 1/2/5/8
TD-SCDMA 34/39
GSM 2/3/5/8 |
| GPS | Built-in | support:GLONASS,QZSS,GPS;Capture sensitivity::-160 dBm；Cool Start
Time:<60 seconds,Hot start time:<28seconds,frequency::0.25 Hz
… 10 MHz |
| NFC | optional | ISO/IEC 14443A, ISO/IEC 14443B PCD 106 kbit/s to 848 kbit/s
ISO/IEC 14443A, ISO/IEC 14443B PICC 106 kbit/s to 424 kbit/s
Reading NFC Forum tags (MIFARE Ultralight, Jewel, FeliCa open
tag,
ISO/IEC 14443-4)
Reading DESFire card
ISO/IEC 15693/ICODE reader
NFC-IP1 and NFC-IP2 protocols (ISO/IEC 18092 /ECMA 340 and
ISO/IEC 21481/ECMA 352) 106 kbit/s to 424 kbit/s
B’ and MIFARE card emulation
|
| 1D barcode scanner | Optional | Honeywell N4313 |
| 2D barcode scanner | Optional | Zebra 4710 |
| Interface Configuration |
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | support SDHC/SDXC x1 max:64G |
| SIM slot | SIM card | SIMx1 |
| USB2.0 interface | data transmission | Micr usb2.0*1 OTG |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 |
| HOME key | home | HOME*1 |
| Menu Key | Menu | MENU*1, |
| Back Key | Back | BACK*1, |
| barcode | barcode | barcode *3 |
| POGO PIN | docking charger | charging function x1 |
| Power on | press key | power key x1 |
| Volume + - | press key | Volume + - x1 |
| Standard Accessories |
| Type | Details | Description |
| USB cable | USB cable | micro USB cable 5P L=1.2M 4 core aluminum foil shield cable |
| Power Adaptor | Standard | AC100V ~ 240V,50Hz/60Hz output DC 5V/2A USA Standard CE approval |
| Docking station | Optional | charing battery and devices |
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | Andriod 8.1 |
| Software Configuration |
| Type | Details | Description |
| Certificate System | IP65 | IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X Report ID
no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm； b. water speed:12.5±0.625L/min；
c. Water Pressure:adjust according to water volumn；
d.Central part of water volumn:diameter of 40mm, distance from
nozzle: 2.5M
e.Spray time in surface of panel:about 1min；f.test time:at least
3min；
g.distance between nozzle and panel surface:2.5～3m.
After test,there is no water leakage in sample. |
| CE NB | Y |
| MIL-STD-810G | Y |
| Battery | UN38.3,MSDS,IEC62133 |
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
Bright Alliance based on the continuous development of industrial
terminal technology, and independently develops the industrial
rugged devices, including Handheld computer and rugged tablet for
many outdoor fileds or industrial fileds,And a variety of
accessories can be selected to meet customers' demand for industry,
aviation, aerospace, vehicle-mounted, police, education,
exploration, fishing animal husbandry, finance and other
industries.now our customers are mainly system integrator and
solution provider,create new service and usages to the end users
Now we mainly sell to European/USA/South America/Middle east etc
Keep moving for cooperation with more partners
Question 1: What's your MOQ?
The MOQ of rugged tablet is 1 piece.
Question 2: What's for payment term and delivery term ?
1.It's generally 40%-100% TT in advance for all orders. Meanwhile,
Paypal or West Union is acceptable.
2. Exw Shenzhen or FCA HK as Trade Term.
