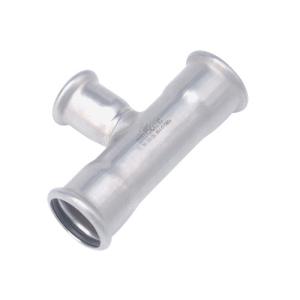

Carbon steel press fittings-Reducing Tee
1. material: carbon steel Q235A.
2. size: 3/8-2inch or as request, pipe wall thickness: 1.0--2.0mm
3. fitting standard: DVGW W534-1995,JIS
4. O-Ring Seal material:
EPDM(black): max working pressure 1.6Mpa, working temperature from
-15 to 110, Suit medium: cold and hot water, compressed Air etc.
5. galbanization: all carbon steel pipe fittings are plated with
rust-resistant zinc.
6. payment term : TT, L/C way of transportation: FOB,CIF,CNF.
7. Anneal: all stainless steel pipe fittings are annealed in inert
gases before packing.
8, It is usually used in connecting the fitting and water-supply.
Also it can be used in transporting drining water, hot water, oil,
gas, and so on. And easy operated and widely use is to be favourate
for everyone. When you built a building you must use cross, why not
chose our product and we will supply a competitive price and high
quality for you.
The Zhengkang Press fitting System in carbon steel is indicated for use in various types of civil and
industrial installations where the stainless steel pipe work is not
required.
Typical applications are:
- closed-circuit water heating and cooling systems
- compressed air and inert gas systems
- sprinkler systems
The o-ring gaskets made of black EPDM, are resistant to aging, heat and chemical additives and are
therefore particularly suitable for all types of treated water.
Conditions of use
- Maximum operating pressure: 16 bar
- Operating temperature: - 20 °C + 85 °C
- Maximum temperature: 120 °C
