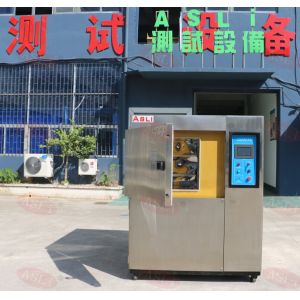

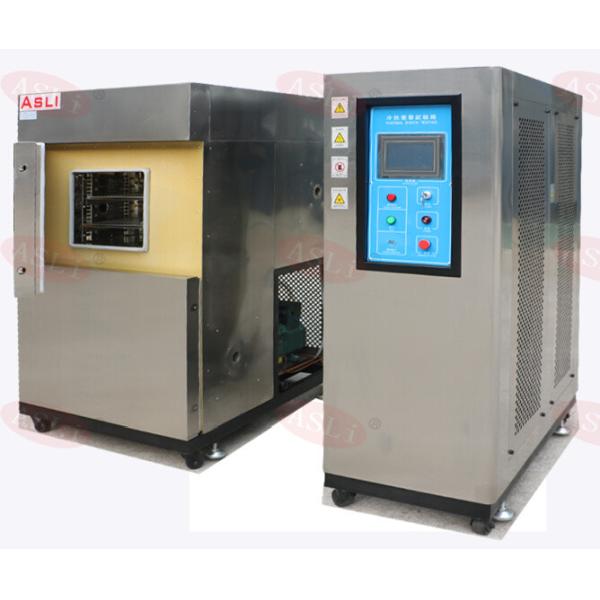

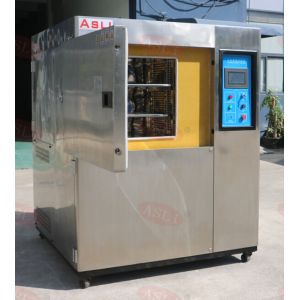

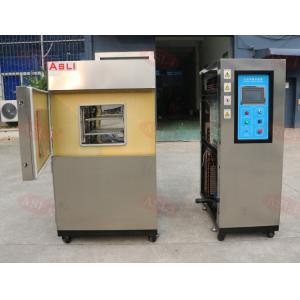

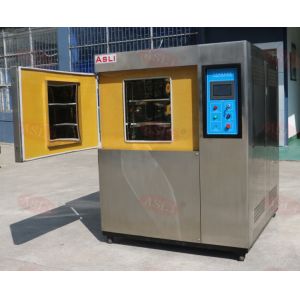

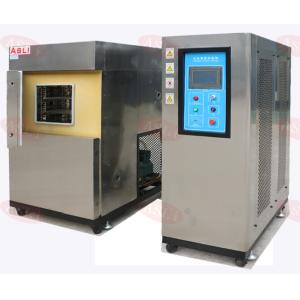

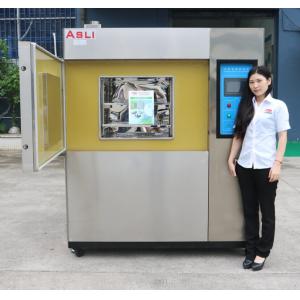

Detachable Environmental Thermal Shock Test Machine for Auto Electronics

Name: Detachable Environmental Thermal Shock Test Machine for Auto Electronics
Brand: ASLI
Price: 1 USD

Ask Lasest Price
Brand Name :	ASLI
Model Number :	TS-252-C
Certification :	CE, ISO , SGS
Price :	Negotiate
Payment Terms :	T/T, Western Union
Supply Ability :	50 sets per year
Delivery Time :	35 workdays

Add to Cart

Product Details
Company Profile

Detachable Environmental Thermal Shock Test Machine for Auto Electronics

=click for details>>>>>>> temperature test machine shock resistance chamber

Environmental Thermal Shock Test chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm, which is widely used in metal, plastic, rubber, electronics and other materials and it can be used as an important reference for improving product quality.

The Thermal Shock Test Chamber is widely used in metal, plastic, rubber, electronics and other materials and it can be used as an important reference for improving product quality. It meets the standard of MTL, IEC, JIS, GJB...

Name	3-Zones Thermal Shock Test Chamber
Model	TS-80(A~C)	TS-150(A~C)	TS-252(A~C)
Internal Dimension WxHxD (mm)	500x400x400	600x500x500	700x600x600
External Dimension WxHxD (mm)	1550x1950x1550	1600x2000x1700	1700x2100x1750
Temperature Range of Testing zone	Type A:-40 ℃~+150℃ ( 200℃ is Optional)	Type B:-55℃ ~+150℃ ( 200℃ is Optional )	Type C:-65℃ ~+150℃ ( 200℃ is Optional)
Temperature Range of Testing zone	High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is Optional); Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºC
Control Accuracy / Distribution Uniformity	±0.5℃/±2℃
Internal and External Material	Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated.
Mechanics	P.I.D+S.S.R+ Micro-computer balanced temperature control system
Cooling System	Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type)

Environmental Thermal Shock Test Machine Price for Auto Electronics Features

1.Highly accurate temperature recovery
2.1000 cycles continuous operation (option: defrost-free operation)
3.Accurate and dependable test result (option: product temperature control)
4.Monitoring product temperature (option: product temperature monitor with trigger function)
5.patent parallel refrigeration system improves reliability
6.Automatic setting of pre-cooling and pre-heating in energy saving, Eco operation mode
7.Minimizing defrosting burden with defrost-free operation (option: defrost-free operation)
8.Parallel refrigerator control system for energy-saving control
9.Can entering normal temperature. RS-232 and RS-485 communication.

♦ Cooling system:

Mechanical compression refrigeration system

Refrigerating unit is french TECUMSEH compressor

Two cascade compressor

Environment friendly refrigerant R404A for first stage

♦ Control panel:

Programmable color display touch screen controller

Programs reach to 999 groups and 999 sections

RS-232/RS-485 interface, PC Link, LAN network

Contact us to discuss your needs.
