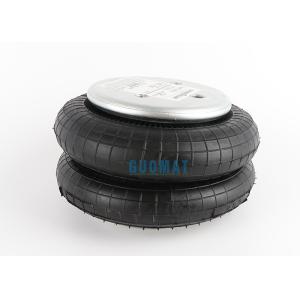

ContiTech FD 200-19 510 Industrial Air Spring W013587788 2B9-245 0.2-0.8 M Pa

ContiTech FD 200-19 510 Firestone W013587788 Industrial Air Spring 2B9-245

Quick details

Brand:
GUOMAT
material:
Rubber + anti-rust iron parts
certificate:
TS16949
colour:
Black rubber part + white zinc
application:
Bus/trailer/truck/car
MOQ:
1 item
OEM:
OEM accepted
package:
Carton or pallet
payment:
T/T

OE number:
Custom processing
Guarantee:
12 months
Place of Origin; Place of Origin:
Guangzhou, China
position:
Before, before/after
product name:
Air suspension bag/spring
position:
Before and after
Types of:
Suspension spring
size:
OEM standard size
car brand:
European cars, American trucks, European trailers
model:
Suspension spring

GUOMAT 2B7788 Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 1 pcs X Combination Stud/Air Inlet Stud Outside Thread is 3/4-16

Bolt or Stud 1/2-13

Screw Center Distance of Top Cover Plate : Middle

Bottom Cover Plate Screw (Nut) Tooth : 1 pcs XThreaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons

Screw Center Distance of Bottom Cover Plate : Middle

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/8-16NPTF

Screw Center Distance Between Gas Hole and Nut : Combination Stud/Air Inlet Stud

❸ Cover Plate

Top Cover Plate Diameter: 160 mm

Bottom Cover Plate Diameter: 160 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter : 224 mm

The Working Stroke : MIN 75 mm to MAX 260 mm

Maximum Height : 274 mm

Minimum Height :95mm

Stroke Height : 179mm

❺ Bumper block / Buffer block

With Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

2B7788 Cross others OEM

GUOMAT NO.2B7788

FD 200-19 510／ FD200-19 510 ／ FD20019 510

AUTOMANN
ABSP2B12R-7788
CONTI
64519
FD 200-19 510
FIRESTONE
7788 W013587788
TRIANGLE
4510
WATSON & CHALIN AS-0088

Goodyear Number: 2B9-245

Bellows type: Double

Automann bellows Number: SP2B12R

Firestone bellows Number: 20F is 20

Goodyear Bellows Number: 578-92-3-202

Contitech bellows number: FD 200-19

Triangular bellows number: 6325

Other kinds of FD 200-19 that GUOMAT have:
