    380v/50Hz Automatic Soft Gelatin Encapsulation Machine With Control Operation Interface System

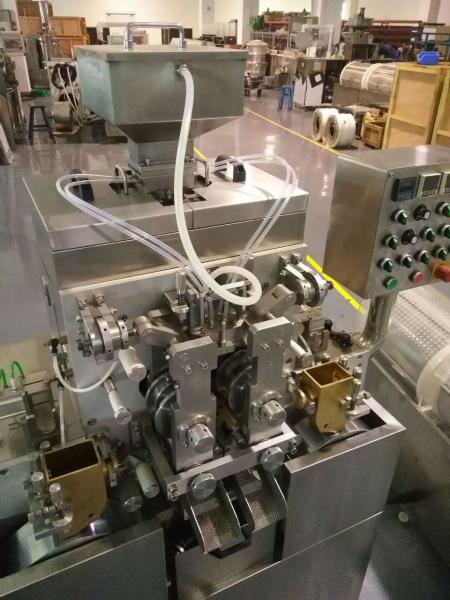

    TM-50 Softgel encapsulation machine with control and operation interface system


    TM50 soft gel encapsulation production line
    Main Machine System
    Room requirement (single for reference): its area should be 20㎡ with the floor height between 2.5m and 3m; the temperature should be controlled between 18-26•C while the relative humidity 25%-35%.
    NO.Device NameUnitQtyTechnical ParametersRemark
    1TM50 type capsule pressing machineset11. Revolution speed of mould: 0-3.5rpm
    2. Production capacity: 12240 capsules/h(OV8,3rpm)oils
    5940 capsules/h(OB20 3rpm)oils
    3. Plunger quantity: 4
    4. The injecting quantity precision error:<±1.5%
    5. Ultromicro lubricating system, the sofe capsules free from cleaning
    6. Single layer hopper without agitator
    7. Manual feeding
    8. SMC pneumatic system, high reliability
    9. Germany Moller electrical components, high reliability
    10. Outline dimension: 1700×810×1750mm
    11. Power: 2KW
    12. Electrical system: three-phase five-wire system, 380v/50Hz
    2conveyorset1Pu belt, light-type structurepower counted in main motor
    3control and operation interface systemset1with rotary knob to operate
    4mouldset1aviation aluminum
    5cooling water systemset1independent cooling water systempower counted in main motor
    6rotary cage drying machinesection21. Size of single cage: Ф316×417mm
    2. Revolution speed: 15rpm
    3. Fan delivery: 900m3×2
    4. Outline dimension: 1400×450×800mm
    5. Electrical system: three-phase five-wire system, 380v/50Hz
    7
    8
    Gelatin Melting System (the platform, pipeline and valve systems are exclusive)
    Room requirement (single for reference): its area should be 15㎡ with the floor height between 4.5m and 5m; the temperature should be controlled between 22-26•C while the relative humidity 40%-50%.
    NO.Device NameUnitQtyTechnical ParametersRemark
    1integrated gelatin melting systemset11.Three-layer thermal insulation and heating structure, electrical heating, vacuum function
    2.Multiple impellers, agitation speed: 51rpm
    3.Physical volume: 100L, Working volume: 70L
    4.Vacuum degree: 0.09Mpa
    5.Working temperature: 0-100℃
    6.Outline dimension: 960×715×1850mm
    7.Power: 9.7KW
    8.Electrical system: three-phase five-wire system, 380v/50Hz
    9.Material: 304 stainless steel
    100L water-bath gelatin melting tank
    set1tank cover and agitator blade lift systemintegrated hydraulic lift system
    set1-integrated vacuum condensation system
    set1-integrated steam-water separator
    set1-integrated water ring vacuum pump
    set1control range: heating, agitating, vacuum and work light etc.integrated control cabinet
    2
    3
    Drying System
    Room requirement: its area should be 10㎡ with the floor height between 2.2m and 2.5m; the temperature should be controlled between 18-26•C while the relative humidity 20%-25%.
    NO.Device NameUnitQtyTechnical Parameters (single)Remark
    1drying trayN901.Outline dimension: 750×475×55 mm
    2.Material: medical grade PP
    2drying tray carriageN3Material: 304stainless steel
    3
