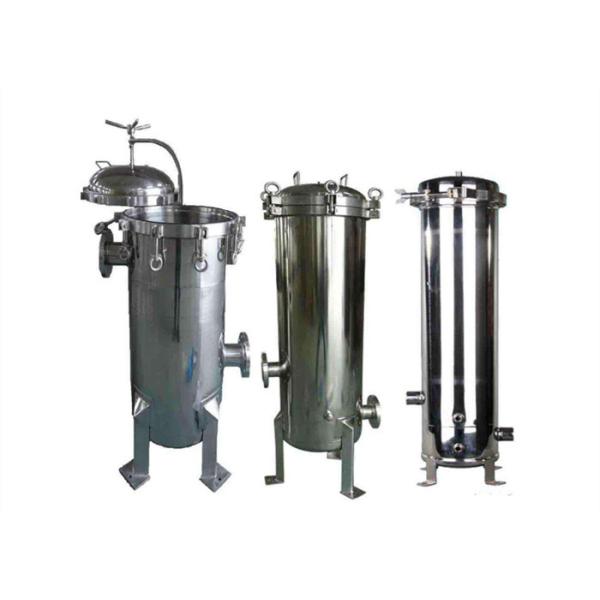

5 Micron SS Cartridge Filter Housing , Multi Cartridge Filter Housing

cheap Fast delivery 5 micron cartridge filter housing factory

Cartridge filter, also known as security filter. The shell is made of high quality stainless steel, filter using molded filter, The liquid went through filter under pressure, residue left on the filter, and the filtrate outflow through the filter can effectively remove impurities in the water, sediment and suspended solids, bacteria. Molded filters are: cloth, screen, filter, sintered filter tube, wound filter, melt-blown filter, micro-porous filter and multi-function filter. Due to different filter, the filter pore size is not the same. Precision filter is between the sand filter (coarse) and a filter between ultra-filtration, filter pore size generally between 0.01-120um.For the same form of filter,it is divided into different models by their dimensions.

• Working pressure:	0.6 / 1.0 / 1.6Mpa
  Body Material:	Stainless steel (SUS304, SUS304L, SUS316, SUS316L).
  Operating temperature:	5 ~ 40 ℃ (exceed 60 ℃ to be informed)
  Design temperature:	5 ℃ -100 ℃
  Replace the pressure:	0.05Mpa-0.07MPA
  Filter interface:	flat compression, plug-in
  Cylinder and base connection mode:	quick opening, flanged
  Filtration accuracy:	1μm ~ 100μm
  Cartridge Quantity:	1 core to 180 cores
  Filter Length:	10 "~ 40"
  Seal type:	O-ring or flat washer
  Seal Material:	PTFE, rubber.
  Outside treating :	matte jet beads, mirror electrolytic polishing.
  Sealing material:	nitrile rubber, silicone, Viton, standard configuration for the silicone seal.
  Interface Type:	GB, HG, DIN, ANSI, JIS standard flanges, dental mouth, clamps and so on.
  Flange Standard:	GB, HG, SH, HGJ, JB, ANSL, JIS and other standards. (User-specified, please indicate the pressure level)
  Manufacturing, testing standard:	GB150 standard, or user-specified criteria.

Shanghai Sffiltech Co.,Ltd.,based on the German technology, is the professional manufacturer and supplier of liquid filtration and separation products. Efiltech products include bag filter system, cartridge filter systems, pipe filters, self cleaning filters, auto back-flush self cleaning filter and other industrial filtration systems. They are widely used in electronics, semiconductor, chemical, pharmaceutical, food, beverages, paints, paper industry, automobile manufacturing, inks, resins, watertreatment and other industrial fields. Sffiltech provide you affordable, reliable and efficient filtration solutions and perfect service.

--Efiltech can provide various filters with international standard, such as American standard, Japanese standard, German standard etc.
--All filters can be custom made according to customer drawings.
--OEM is available Expect long term and good cooperation with all friends from all of the world.
