OPTO-EDU A18.1825-LCD Digital Comparison Microscope with 3.2x~230x Magnification 10.5" LCD Camera and 8.0M Resolution

    Buy cheap OPTO-EDU A18.1825-LCD Digital Comparison Microscope with 3.2x~230x Magnification 10.5

    Buy cheap OPTO-EDU A18.1825-LCD Digital Comparison Microscope with 3.2x~230x Magnification 10.5
    • Buy cheap OPTO-EDU A18.1825-LCD Digital Comparison Microscope with 3.2x~230x Magnification 10.5
    • Buy cheap OPTO-EDU A18.1825-LCD Digital Comparison Microscope with 3.2x~230x Magnification 10.5
    • Buy cheap OPTO-EDU A18.1825-LCD Digital Comparison Microscope with 3.2x~230x Magnification 10.5
    • Buy cheap OPTO-EDU A18.1825-LCD Digital Comparison Microscope with 3.2x~230x Magnification 10.5

    OPTO-EDU A18.1825-LCD Digital Comparison Microscope with 3.2x~230x Magnification 10.5" LCD Camera and 8.0M Resolution

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A18.1825-LCD
    Certification : CE, Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T,West Union,Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    OPTO-EDU A18.1825-LCD Digital Comparison Microscope with 3.2x~230x Magnification 10.5" LCD Camera and 8.0M Resolution



    Large Binocular Head

    both eyepiece tube diopter+/-5 adjustable, with WF 10X/22mm eyepiece high eyepoint

    Magnification Switch

    5 step zoom plan objective: 0.8x, 1.25x, 2x, 3.2x, 4.8x


    Magnification Correction System, with correcting lens

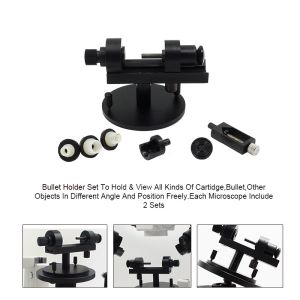

    Bullet Holder Set

    To hold & view all kinds of cartridge, bullet, other objects in different angel and position freely. Each Microscope Include 2 sets.


    Separation Line Adjust System in Black, with special designed adjust driver


    Coaxial Light Attachment

    to get vertical light path for watching inside deep hole bottom



    Polarizing Light Lens Set

    To eliminate flare lights and dazzling lights


    Eyepiece WF 10x/22mm and WF 20x/12mm, high eyepoint, each 2 pcs included


    Auxiliary Lens 0.4x and 2x, each 2 pcs included



    9.7’ LCD Digital Camera

    Opto-Edu has upgraded A18.1825-LCD’s LCD from A59.3520 to A59.3521 in 2024, with Bigger LCD, Higher resolution, Better software at SAME price! Welcome to try the brand new design!


      A59.3520 A59.3521 Upgrade 2022!
    LCD 9.7" HD IPS Touch Screen With Backlight 10.5" HD IPS Touch Screen With Backlight
    Camera 5.0M Digital Camera 8.0M 4K Digital Camera
    Sensor 1/2.5" CMOS 1/1.8" CMOS
    Resolution 2048x1536 @15FPS 3840*2158 @30FPS
    Pixel 2.2umx2.2um 2.0umx2.0um
    Memory 2GB DDR3 / 8GB EMMC 2GB LPDDR4 / 16GB EMMC
    Digital Zoom - 16x
    Data Output USB2.0*1, For USB Mouse + Keyboard Control USB2.0*1, For USB Mouse + Keyboard Control
    USB2.0*1, For USB Disk USB3.0*2, For USB Disk, Support Max 128G
    Mini HDMI*1 Sync Output to Monitor HDMI*1 Sync Output to Monitor
    - LAN*1
    TF Card, Support Max 32G -
    Headphone 3.5mm -
    Image Format .jpg .jpg
    Video Format 1080p 1080p
    System Android 5.1 System Android 11 System
    90 Languages 90 Languages
    Exposure Control Auto/Manual Exposure Control Auto/Manual
    White Balance Auto/Manual White Balance Auto/Manual
    Support WIFI Support WIFI
    Support Bluetooth Support Bluetooth
    Software S-Eye Software & Instruction Manual Installed, All Kinds Mark, Measure, Analysis Function S-Eye Software & Instruction Manual Installed, All Kinds Mark, Measure, Analysis Function
    Function Direct Enter Microscope View
    Size Pad 238x182x12mm, Camera 40x39mm Pad 237x169x10.5mm, Camera 40x39mm
    Power DC 12V/2A Power Adaptor, AC 100~240V
    Package Packing Box 10x24x29cm, 0.6Kg, 1 set/Box, including: LCD Camera, AC Adapter

    All Optical Parameter Adjustable

    Capture Phot & 1080p Video


    Accessories Packed in Strong Aluminum Box




    Mag./Viewfield Eyepiece10X Eyepiece20X Photo Adapter Video Adapter Working Distance
    Objective Bridge Body
    0.8X 1.2X 9.6X/φ28 19.2X/φ17 2.5X 0.5X 101mm
    1.25X 15X/φ18 19.2X/φ17
    2X 24X/φ11 48X/φ7
    3.2X 36X/φ7 77X/φ4.5
    4.8X 58X/φ4.2 115X/φ2.3
    Total Magnification with 0.8x objective, auxiliary lens 0.4x, WF10x eyepiece, magnification = 0.8*0.4*10*1.2=3.8x


    A18.1825-LCD Digital Forensic Comparison Microscope Specification
    LCD Pad Digital Camera 10.5'' LCD Pad Digital Camera, Android System,
    8.0 M Pixels, Full Resolution 4k
    USB3.0*2, USB2.0*1, HDMl, Gigabit LAN Port
    Details see A59.3521
    Magnification 3.8x~230x
    Head Binocular Head, 30° Incline, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable
    Eyepiece WF10x/22mm, High Eyepoint
    WF20x/12mm, High Eyepoint
    Objective 5 Step Zoom Plan Objective 0.8x, 1.25x, 2x, 3.2x, 4.8x
    Auxiliary Lens 0.4x, 2.0x
    Working Distance 101mm
    View Field Dia. 2.3~62mm
    Magnification Correcting Magnification Correction System, With Correcting Lens
    Separation Line Adjusting Separation Line Adjust System In Back, With Special Designed Adjust Driver
    Working Stage Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm
    Round Tiltable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable
    Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm
    Light Source 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable,2pcs
    5W LED Cold Light, High Brightness, Brightness Adjustable,2pcs
    Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface,2pcs
    Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights,2pcs
    Ultraviolet Light Lens,2pcs
    Filters: Red, Blue, Yellow, Green,2pcs Each Color
    Adapter 0.5x CCD Adapter For Digital Camera
    Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon)
    Power 80~240V Wide Range Voltage
    Bullet Holder Standard Bullet Holder 2 Sets
    Dimension Instrument Size 37*30*63cm
    Optional Accessories
    Light Source 150W Cold Light Source, With Optical Fiber & Light Collector A56.1821
    Software Professional Forensic Image Analysis Software A30.1821
    Bullet Holder Motorized Bullet Holder 1 Set, Used With Software A54.1813
