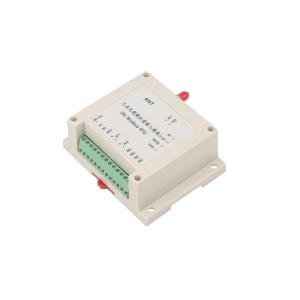

2 Channels Wireless I O Module 0-5V Analog Input / Output 433MHz RS485 Interface

2 channels Wireless Analog Module 0-5V Analog Input and Output 433MHz

Introduction

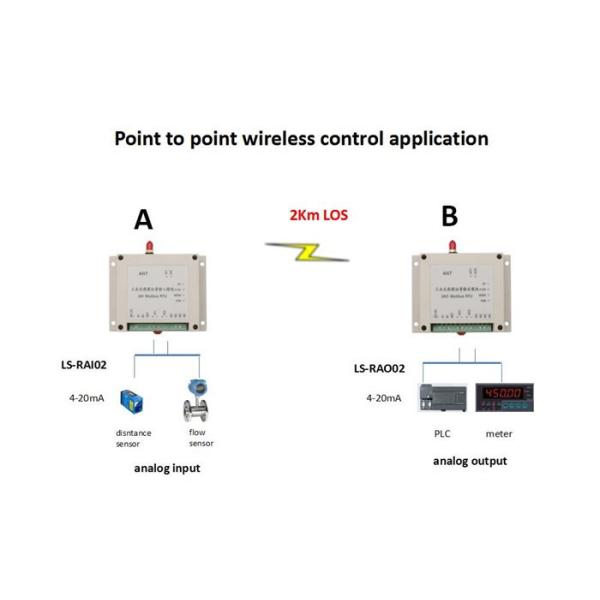

This system includes a LS-RAI02 2ch analog input module and a LS-RAO02.2ch analog output module

It is ok to transmit 0-5V or 4-20mA or 0-10V analog signal

The control distance covers 2km LOS

One side analog input, one side analog output

LS-RAI02 Parameter

LS-RAO02 parameter

Application:

Wireless pump controls

Automate your tank level without running wire between the well pump and the tank. Wireless pump controls save you time and money.

Wireless tank level monitoring
simple wireless monitoring of your tank level from a remote location and receive critical status updates.

Smart agriculture

Pivot irrigation, soil pressure and temperature monitoring

Data Logging
Wirelessly acquire and log various data from a remote location using our analog I/O module

Stacker Control
Start and stop your stacker/reclaimir. Connect PLC in control center with stacker and reclaimer.

Sensor signal wireless collection

0-5V or 4-20mA signal wireless transmission

Modbus RTU communication and corresponding value

Register types:

A. Hold register

1. Analog input value: 0x0008~0x000B

2. Analog output value: 0x0048~0x004B

B: How to read

Hold register: can read 4 analog input or control 4 analog output at one time

Register control way

About value calculation

Analog input

Our analog module’s max measure range value is : 0X7FFF

1. Directly measure current and voltage

Exact value=value you read/0x7FFF*max range

For example: to read the 1st passage of module’s (with max range of 0-20mA) input value

Register 0x0008(analog input of the 1^st passage)

Feedback: 0x3801

Current value: (0x3801/0x7FFF)*20mA=8.7509mA

2. To measure sensor’s value(4-20mA, 0-6 meter level sensor)

If feedback value is less than 6554, level value is 0

If feedback value is bigger than 6554, level value=(value read-6554)/(32767-6554)*measure ranges

For example: feedback value is 0X3801, then corresponding level value is: ((0X3801-6554)/26213)*6 meter=1.7815 meter

Analog output

Analog module’s max measure range is: 0x7FFF

Directly control output current and voltage

Write register value=current or voltage value/measure range*0x7FFF

For example: to control the 1st passage of analog module whose max measure range is 0-20mA

Register 0x0048 (analog output of the 1st passage)

To write register value:(8.75/20mA)*0X7FFF =14336=0x3800
