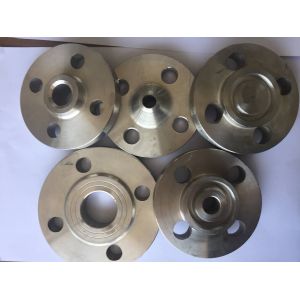

ASME B16.5 Nickel Alloy Flanges Alloy 31 ASTM B564 UNS N08031 WN SO BL Flange

    Buy cheap ASME B16.5 Nickel Alloy Flanges Alloy 31 ASTM B564 UNS N08031 WN SO BL Flange from wholesalers

    Buy cheap ASME B16.5 Nickel Alloy Flanges Alloy 31 ASTM B564 UNS N08031 WN SO BL Flange from wholesalers
    • Buy cheap ASME B16.5 Nickel Alloy Flanges Alloy 31 ASTM B564 UNS N08031 WN SO BL Flange from wholesalers
    • Buy cheap ASME B16.5 Nickel Alloy Flanges Alloy 31 ASTM B564 UNS N08031 WN SO BL Flange from wholesalers
    • Buy cheap ASME B16.5 Nickel Alloy Flanges Alloy 31 ASTM B564 UNS N08031 WN SO BL Flange from wholesalers

    ASME B16.5 Nickel Alloy Flanges Alloy 31 ASTM B564 UNS N08031 WN SO BL Flange

    Ask Lasest Price
    Brand Name : HT
    Model Number : Alloy Steel 31
    Certification : ISO SGS BV TUV CE,etc.
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000000000pcs per month
    Delivery Time : 1~15days
    • Product Details
    • Company Profile

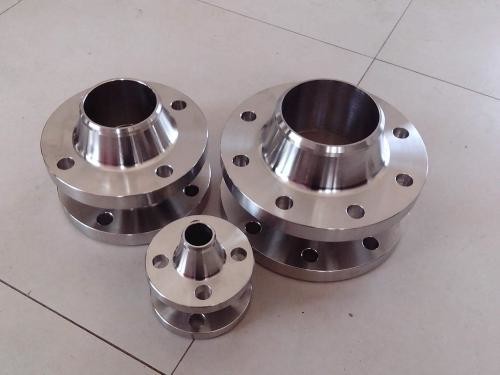

    ASME B16.5 Nickel Alloy Flanges Alloy 31 ASTM B564 UNS N08031 WN SO BL Flange

    ASME B16.5 Nickel Alloy Flanges Alloy 31 ASTM B564 UNS N08031 WN SO BL Flange


    1. Information of Alloy 31

    Alloy 31, N08031, 1.4562,
    Chemical composition(%)Carbon, max0.015
    Manganese, max2.0
    Phosphorus, max0.020
    Sulfur, max0.010
    Silicon, max0.3
    Nickel30.0~32.0
    Chromium26.0~28.0
    Molybdenum6.0~7.0
    Copper1.0~1.4
    Nitrogen0.15~0.25
    Ironbalance
    Tensile strength(MPa, min)650
    0.2% Yield strength(MPa, min)276
    Elongation(%, min)40

    2. ASME / ANSI B16.5 Flanges Manufacturers in HT PIPE Specification

    ASME B16.5 Flange Size Chart1/2" (15 NB) to 48" (1200NB)
    ASME B16.5 Flange Pressure RatingClass 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
    ASME B16.5 Flange Pressure Calculation in DIN6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
    ASME Flange StandardsANSI/ASME B16.5
    JIS5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
    UNI6Bar 10Bar 16Bar 25Bar 40Bar
    EN6Bar 10Bar 16Bar 25Bar 40Bar
    CoatingOil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
    Most common types of ANSI B16.5 FlangeForged / Threaded / Screwed / Plate
    Test CertificatesEN 10204/3.1B
    Raw Materials Certificate
    100% Radiography Test Report
    Third Party Inspection Report, etc
    Production techniqueForged, Heat treated and machined
    Connect Type/ Flange Face TypeRaised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove
    Special design

    As per your drawing

    AS, ANSI, BS, DIN and JIS
    15 NB (1/2") to 200 NB (8")
    Equal and Reducing Configurations

    TestDirect-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
    EquipmentPress machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
    OriginIndian / West Europe / Japan / USA / Korean
    ANSI B16.5 Flange Uses & application

    Heavy oil refineries.

    Bitumen upgraders.

    Nuclear power (mostly seamless).

    Petrochemicals and acids.

    Export toSingapore,Dubai, Saudi Arabia, Spain,Peru, Brazil, USA, Ireland, Iran, India, Indonesia, Ukraine, Canada, Thailand, Korea,Egypt, Oman etc.

    3. ASME B16.5 Class 150 Dimensions in MM


    Nominal SizeOutside Diameter
    (OD)
    Min. Thickness
    (T)
    RF Dia.
    (R)
    No. of Bolt HolesDiameter of HolesBolt Circle
    (BC)
    SO Bore ID
    (SB)
    WN Bore ID
    (WB)
    Dia. Hub Base
    (HB)
    Dia. of Hub Top
    (HT)
    SO LTH
    (SL)
    WN LTH
    (WL)
    1⁄23.500.381.3840.622.380.880.621.190.840.561.81
    3⁄43.880.441.6940.622.751.090.821.501.050.562.00
    14.250.502.0040.623.121.361.051.941.320.622.12
    11⁄44.620.562.5040.623.501.701.382.311.660.752.19
    11⁄25.000.622.8840.623.881.951.612.561.900.812.38
    26.000.693.6240.754.752.442.073.062.380.942.44
    21⁄27.000.814.1240.755.502.942.473.562.881.062.69
    37.500.885.0040.756.003.573.074.253.501.122.69
    31⁄28.500.885.5080.757.004.073.554.814.001.192.75
    49.000.886.1980.757.504.574.035.314.501.252.94
    510.000.887.3180.888.505.665.056.445.561.383.44
    611.000.948.5080.889.506.726.077.566.631.503.44
    813.501.0610.6280.8811.758.727.989.698.631.693.94
    1016.001.1212.75121.0014.2510.8810.0212.0010.751.883.94
    1219.001.1915.00121.0017.0012.8812.0014.3812.752.124.44
    1421.001.3116.25121.1218.7514.1413.2515.7514.002.194.94
    1623.501.3818.50161.1221.2516.1615.2518.0016.002.444.94
    1825.001.5021.00161.2522.7518.1817.2519.8818.002.625.44
    2027.501.6223.00201.2525.0020.2019.2522.0020.002.815.62
    2229.501.7525.25201.3827.2522.2221.2524.2522.003.075.82
    2432.001.8127.25201.3829.5024.2523.2526.1224.003.195.94

    .DIMENSIONS ARE IN INCHES
    .Bolt hole diameter 1/8" larger than bolt diameter


    4. ASME B16.5 Flange Price List

    MaterialSizePrice / pcs
    ASME B16.5 Class 150 FlangesDN50£ 50.60
    ASME B16.5 Class 300 Flanges ManufacturersDN65£ 50.10
    ASME B16.5 Class 600 FlangesDN80£ 65.30
    ASME B16.5 Class 400 FlangesDN65£ 55.20
    ASME B16.5 Class 900 FlangesDN100£ 70.20
