| Brand Name : | Limplus |
| Model Number : | LS-24T |
| Certification : | CE |
| Payment Terms : | T/T, , MoneyGram, Paypal |
| Supply Ability : | 500sets / month |
| Delivery Time : | 7~10 working days |

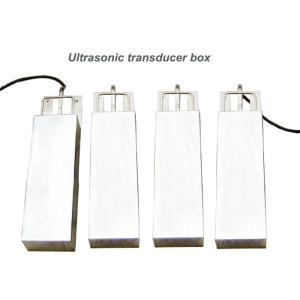

Limplus Detachable Submersible Immersible Ultrasonic Transducer Box with 28kHz Tube
Application of ultrasonic transducer:
1. Clean circuit board
2. Clean car/motor/truck parts
3. Clean mould
4. Clean hardware parts
5. Clean electronic parts
6. Extraction
Advantages:
1. Adopt high quality Stainless steel
2. Industrail ultrasonic transducers with long working life
3. Professional transducer glue
4. Hard-Cr plating
5. Hand welded
6. Flexible tube or Rigid based on application.
7. Box size can be customized.
8. Varies cable leadout method
9. Multi frequency is also available.
specification:
| LS-24T | Transducer box size | 500*350*100mm |
| Ultrasonic power | 0~1200W | |
| Ultrasonic frequency | 25khz / 28khz/ 40khz | |
| Material | SUS304 / SUS316L | |
| Surface handle | Hard-Cr plating | |
| Transducer numbers | 24pcs | |
| Controller | Separate generator control | |
| Timer | 0~99minutes or continous working | |
| Cable leadout method | Rigid or flexible | |
| Voltage | AC110V / AC220V |
Transducer box system specification:
| Model | Unit Size (mm) | Ultrasonic Power(W) | Frequency(kHz) | Transducers(pcs) | Material | Voltage |
| LS-06T | 280*180*100 | 0~300 | 28/40 | 6 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-12T | 360*250*100 | 0~600 | 28/40 | 12 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-18T | 410*300*100 | 0~900 | 28/40 | 18 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-24T | 500*350*100 | 0~1200 | 28/40 | 24 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-30T | 550*420*100 | 0~1500 | 28/40 | 30 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-36T | 620*500*100 | 0~1800 | 28/40 | 36 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-48T | 750*600*100 | 0~2400 | 28/40 | 48 | SUS304/SUS316L | AC 110V/230V, 1phase |

Please refer below picture and choose the convenient cable leadout method according to your tank.

|
