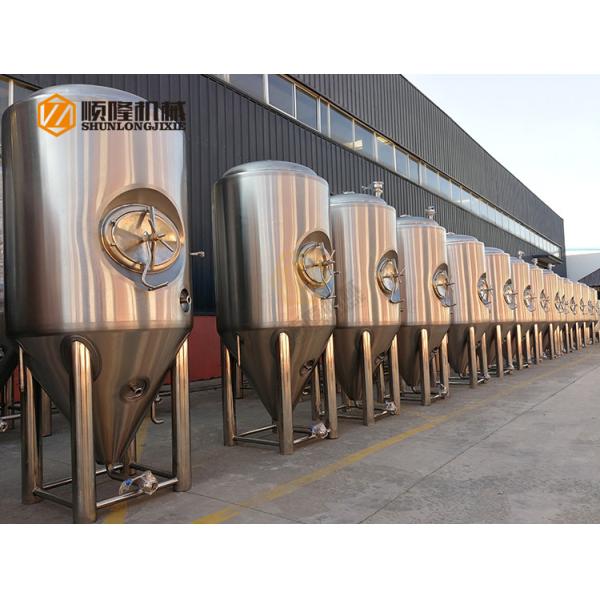

500L stainless steel fermentation tank
- Design pressure 3 bar, working 2 bar
- 4 stainless steel legs with leveling footpads
- Interior shell: 304 stainless steel, thickness 2mm (11 gauge)
- Exterior shell: 304 stainless steel, thickness 3mm (14 gauge)
- Interior and exterior finish bright polish to 0.6μm (250 grit),
hygiene surface
- 60 /70 degree cone bottom, with 25% head space
- Racking port and discharge port with butterfly valve and fittings
- Side manway door, shadowless
- Dual zone dimple cooling jacket with glycol inlet and outlet
- Polyurethane insulation thickness 80-100mm for cooling jacket on
side and bottom
- Fully welded exterior shell
- CIP arm and spray ball
- Rotating tank racking arm
- Bunging valve
- Shock proof Pressure gauge
- Thermometer
- Perlick style Sample valve
- Tank complete with fittings, valves and all parts
List of Items
- 1.Dished head .
- 2.Reference outer size 1060/1060/2130cm
- 3.Total capacity 740L ;Effective capacity 500L
- 4.Design pressure 0.2mpa;working pressure 0.15mpa
- 5.Single stage cooloing jacket ,stainless steel solenoid valve
,KIESELMANN mechanical pressure regulating valve
- 6.Dimple cooling jacket 1.5mm
- 7.conial base 60
- 8.Beer racking arm on cone section, bottom drain port,associated
valves and fittings
- 9.Beer outlet and drain port
- 10. Top hops and drain port
- 11.Pressure gauge,respiration valve,samole valve
- 12.Top mamhole
- 13.PT100 temperature probe
- 14.4 stainless steel legs,with screw assembly to adjust leg
height,the base plate with two fixed hole
- 15.The necessary fittings and valves.
Fermentor inner using 304 stainless steel,luxury stainless steel
8k/drawing main exterior ,bright stainless steel mushroom head
;internal polished 0.4um,internal omni-directional Wshing
ball;polyurethane insulation;75°under cone compression design ,with
stainless steel Miller board/ice water coil pipe to cool down.
Fermentatrion tank complete with piping ,fitting ,sanitary,and all
parts.
Carbonation port is available for special request .
If you would like to change ,add ,remove or modify any parts of
tanks, we can accommodate that.
Specific fitting sizes,changes and locations will be set during the
design process after a deposit is taken
