Mono Silicon Integrated Solar LED Street lighting MPPT Charging
System
01. Specification of Solar Led Street Light
| Battery | 18650 Lithium Battery 12V 50Ah |
| Beam Angle | 150*70 Deg | 150*70 Deg | 150*70 Deg |
| Pole Dia(mm) | 60 | 60 | 60 |
| Light Output(w) | 50W |
| Lum Flux(lm) | 8000 | 7750 | 7500 |
| Chip Brand | Luxeon 5050 |
| Solar Panel | 50W/18V Sunpower Monocrystalline Silicon |
| CRI | >70 |
| Color Temperature | 2700-6500K |
| Oprating Time | Full power>12hrs, Intelligent mode: 3-4days |
| Contrl Mode | Light control+Motion sensor |
| Material | Die-casting Aluminum |
| Lum Efficiency(lm/w) | >160 |
| Lifespan(hrs) | >50000 |
| IP Rating | IP66 |
| Installation Height | 4-8M | 4-8M | 4-8M |
| Size(mm) | 945*298*127 | 945*298*127 | 945*298*127 |
| Net Weight(kg) | 11 |
| Package Size(mm) | 1000*340*180 | 1000*340*180 | 1000*340*180 |
| Gross Weight(kg) | 12.1 |
| Package Quantity | 1 | 1 | 1 |
02. Feature of Led Street Light
1. Adopting Luxeon 5050 LED High luminous efficiency, Whole lamp
output light efficienty >160lm/w.8% light efficiency higher than
the same type lights in the market.
2. Adopting MPPT Controller, Constant pressure type. Stabilize the
output voltage of the storage battery, such as constant 12V or
24V.The voltage is not adjustable, and the current varies according
to the load power
3. Adopting 50W /18V monocrystalline silicon solar panel,LED
Lights, Lithium Battery, Intelligent Controller Integrated Aluminum
Alloy Shell.
4. time control + light sensor control+ motion sensor control
5. Motion and light sensor built in:solar street light goes on at
dusk at 50% brightness. Can go from 50% power to full brightness
when motion is detected. Three Intelligent Modes: Bright / DIM /
Recharge.
* Bright: motion activates for lighting when motion is detected for
security light and to save battery;
*DIM: 50% lighting for saving power when no motion;
*Off/Recharge: automatically turns off in daylight and goes into
recharge mode. (working mode can be adjusted according to client's
demands).
6. AC/DC Hybrid system for optional:Features a DC detection
function. If DC available, the system will automatically switch to
lithium battery supply when the battery voltage rise to the DC
switching point; the system will automatically switch to DC power
supply when the battery voltage falls to the DC switching point; if
DC powers off, the system will shut off output when the battery
reaches the over-discharge point after continuous discharging.
03. Outlook of Led Solar Street Light

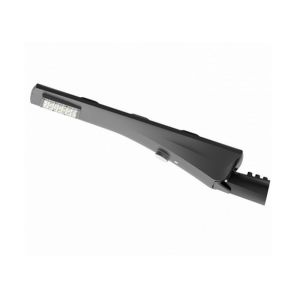

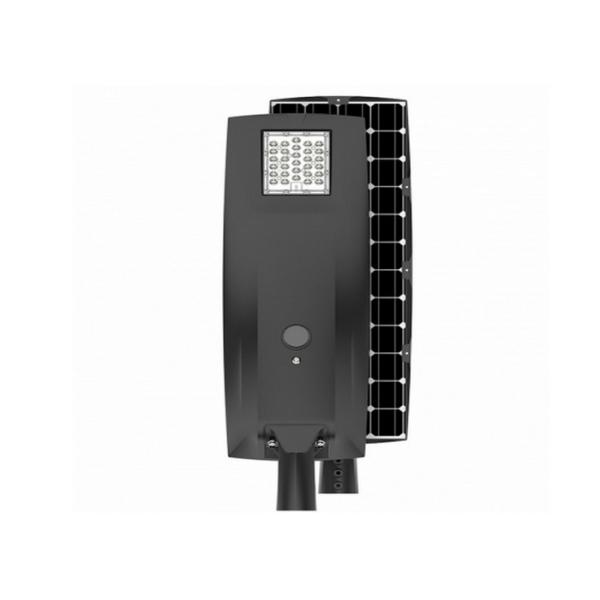

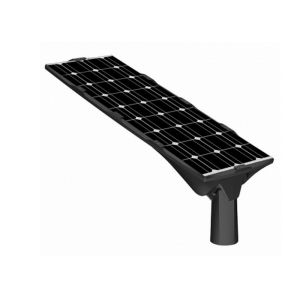

04.Pictures of 50W Led Street Light
05. Application of Outdoor Led Street Light
06 Production of Energy Eefficient Street Lighting
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with
new order for small quantity. Fordefective batch products, we will
repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
