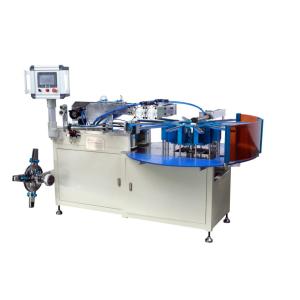

Turntable Clipping Automotive Filter Manufacturing Machines For
Spin-On Oil Fuel Filter Strip Clip
1, General description
This machine is professionally used for clipping the paper ends
with the steel strip.
2, Machine Specifications
| Product capability | 20~25pcs/min |
| Filter paper height | 30~250mm |
| Pleating height | 10~38mm |
| Sizes of Steel strips | a)thickness 0.25~0.3mm b)width 12mm c)coiled material Ф inner
Dia.＞150mm,Ф outer Dia.＜600mm |
| Motor power | 1KW |
| Power supply | 220V/50hz |
| Working sir pressure | 0.6Mpa |
| M/C weight | 600kg |
| M/C size | 2080×1400×1500mm(L×W×H) |
3, Features
1, The whole working process of the steel strip
forming-clipping-cutting-resuming is automatically finished by the
PLC control pneumatic and machine.it is fast speed and high
efficiency.
2, The steel strip clip the filter paper ends tightly to prevent
the filter element from leakage.
3, The clipping height and width are easy to be adjusted and keep
consistency as well.
4, The computer monitor control is used, which is easy to operate.
5, The are 12 clip and convey stations, it is fast speed and high
efficiency.
6, This machine has the cylinder un-loading device, it is a high
degree of automatic.
