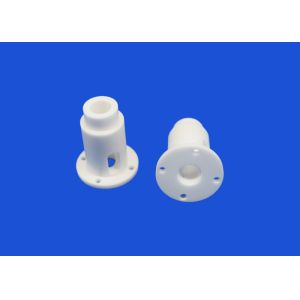

high precision customized advanced fine alumina sand blasting
ceramic nozzle
Alumina ceramics, Al2o3 ceramics, has the advantages of high
melting point and boiling point, high hardness, insulation at normal temperature, and electrical conductivity at high
temperature.
1) Material:
a) 95% Al2O3
b) 99.5% Al2O3
c) ZrO2
2) Surface finish:
a) Normal polish Ra 08-1.0μm
b) Fine polish Ra 0.4-0.6μm
c) Diamond polish Ra 0.2μm
3) Properties:
a) Wear resistant
b) Corrosion resistant
c) Heat resistant .
d) Stable dimensions
e) Lightweight ,
f) Long performance life
g)favourable price and shortest delivery
Alumina Ceramic tube has exceptional hardness and strength, resistance to chemical
attack and wear, low dielectric loss and excellent electrical insulation properties. Additionally,
Alumina can be metallized for brazing to other metals, highly polished, and comes in a variety of purities depending on it use.
Due to these outstanding properties ceramic Alumina tubes are used in a wide range of industrial and advanced applications.
1) A variety of specifications available.
2) Satisfy various technical request
3) High quality be sure
4) Good insulation performance and high temperature resistance
5) Bending strength and compressive strength resistance
6) Used in all electric products and electric heating products
7) OEM, ODM and OBM are welcomed
Description
1. Name:ceramic plunger
2. Size: customize
3. Grade: 95-99 grade
4. Raw material:95%/99% alumina
5. Color:white or ivory
6.Working temperature:1500-1700
7.Feature:refractory,wear resistance,high strength and so on.
8.Purpose:used in machinery,textile,electricity,solar energy
,mobile phone,construction industry ,etc
We can offer the products base on customer's drawing, sample and
other reference parameter
Properties Sheet:
| Properties | Units | 95 Alumina | 99 Alumina | Zirconia |
| Density | ɡ / cm3 | 3.65 | 3.92 | 5.95 - 6.0 |
| Water Absorption | ％ | 0 | 0 | 0 |
| Coefficient of Thermal Expansion | 10-6 / K | 7.9 | 8.5 | 10.5 |
| Modulus of Elasticity Young’s Mod | Gpa | 280 | 340 | 210 |
| Poisson’s Ratio | / | 0.21 | 0.22 | 0.3 |
| HV Hardness | Mpa | 1400 | 1650 | 1300 - 1365 |
| Flexural Strength @ Room Temperature | Mpa | 280 | 310 | 950 |
| Flexural Strength @ 700℃ | Mpa | 220 | 230 | 210 |
| Compressive Strength@Room Temperature | Mpa | 2000 | 2200 | 2000 |
| Fracture Toughness | Mpa * m½ | 3.8 | 4.2 | 10 |
| Heat Conductivity @ Room Temperature | W / m * k | 18 - 25 | 26 - 30 | 2.0 - 2.2 |
| Electrical Resistivity @ Room Temperature | Ω*mm2 / m | ＞1015 | ＞1016 | ＞1015 |
| Max Application Temperature | ℃ | 1500 | 1750 | 1050 |
| Resistance to Acid Alkaline | / | High | High | High |
| Dielectric Constant | / | 9.5 | 9.8 | 26 |
| Dielectric Strength | KV / mm | 16 | 22 | / |
| Thermal Shock Resistance | Δ T ( ℃ ) | 220 | 180 - 200 | 282 - 350 |
| Tensile Strength @ 25℃ | Mpa | 200 | 248 | 252 |
Product show
The other related products
Ceramic parts
Package and shipping
High al2o3 tube insulators will be packed in a bubble bag
individually, then separated by a foam, finally put in standard
export carton packing, or OEM packing.
Shipped by Express ( DHL, TNT, UPS, Fedex, EMS ), Air, or Sea
transportation.
Company information
Who Are We?
Mingrui has professional OEM experience in manufacturing industrial ceramic parts for so many
years. We can make the products according to your drawings, custom the size,
thickness and other parameters.
What Do We Do?
We have very advanced technologies in the production of zirconia and alumina ceramic nozzle, rod, ring, tube, shaft, plate,
sleeve, valve, plunger, bearing, and semiconductive ceramics etc.. They are applicable to Electrical, Appliance, Mining, Oil & Gas,
Energy & Power, Food & Medical, Agriculture, Aerospace,
even other High-end fields.
Our products with some certificates, such as , CE, TUV, etc..
Factory information
Delivery:
Custom OEM will be shipped within 15 days after determining the
parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the
ceramic plates, please contact us or email:admin@cerampart.com
CEO: Admin deng
Dongguan Mingrui Ceramic Tech. Co. Ltd.
Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,
Chang'an town, Dongguan city, Guangdong, China 523867
Email: admin@cerampart.com
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
