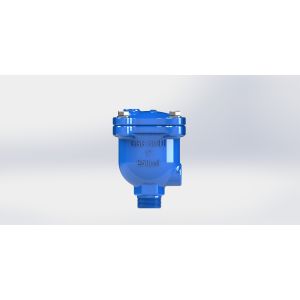

    Blue Exopy Coated Float Air Vent Valve With Ductile Iron Body , High Performance

    Ask Lasest Price
    Brand Name : AFC OEM
    Model Number : ARVS
    Certification : WRAS
    Price : USD RMB
    Payment Terms : L/C, T/T
    Supply Ability : 60 days for two containers
    Delivery Time : Based on order
    • Product Details
    • Company Profile

    Blue Exopy Coated Float Air Vent Valve With Ductile Iron Body , High Performance


    Blue Exopy Coated Float Air Vent Valve Thread Type BSPT Or NPT


    Feature


    • High grade ductile iron body, reduce the weight and much longer life than cast iron.
    • Simple mechanism with lever and float.
    • The float and internal mechanism are made of AISI 304 stainless steel and last for much longer life cycles.
    • Longer service life due to epoxy coating for both inside and outside.
    • Male connection can easily be connected to isolated valves, no need further nipples.
    • BSPT or NPT thread end connection are available.


    Description:


    ARVS-Single air release valve is genarally installed in the top of the pipeline, and used for exhausting the compressed air in pipeline system, generally there will be about 2% of dissolved air in water and it will release as bubbles and thru the air release valve nozzle. It can prevent the existence of bubble gap for flow, this can help a better efficiency for transmission of flow.


    Material

    No.Part NameMaterialStandard
    1BodyDuctile IronEN GJS500-7
    2SeatRubberEPDM
    3PinStainless SteelAISI304
    4BonnetDuctile IronEN GJS500-7
    5Small NozzleStainless SteelAISI304
    6Hex BoltStainless SteelAISI304
    7WasherStainless SteelAISI304
    8O-ringRubberNBR
    9Support PlateStainless SteelAISI304
    10Hex BoltStainless SteelAISI304
    11FloatStainless SteelAISI304

    Dimension



    Air Flow Characteristic
