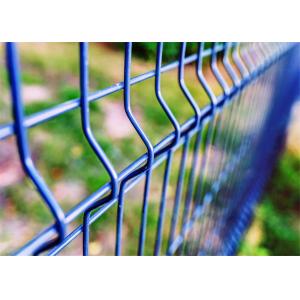

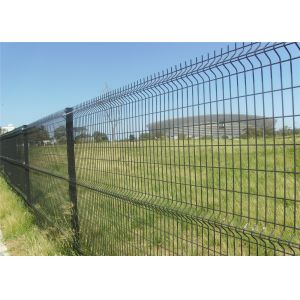

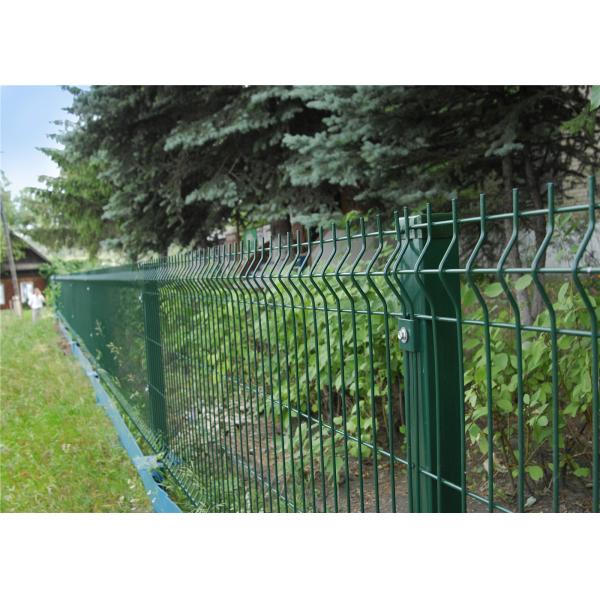

Welded Wire Bends Fence Panel Pvc Coated Mesh
Product Description
We supply Galvanized Welded Wire Mesh, Stainless Steel Welded Wire
Mesh and
PVC Welded Wire Mesh with high quanlity,favorable price and
excellent service.
1) Material about welded wire mesh
Electro galvanized wire, hot-dipped galvanized.
[Electro galvanized]
Electro galvanizing, uniform coating and thin thickness. Coating
are usually only 3-15 microns with bright appearance. Common
electro galvanized wire on zinc amount is 8-13 g/m².
[Hot-dipped galvanized]
Hot-dipped galvanized, coated thickness and nonuniform coating.
Coating are usually 45-300 microns with darker color and good
corrosion resistance. Hot-dip galvanized wire amout of zinc: 30-60
g/m²
2) Welding Type
Electro galvanized before welded wire mesh
Electro galvanized after welded wire mesh
Hot-dipped galvanized before welded wire mesh
Hot-dipped galvanized after welded wire mesh
Iron/galvanized wire+pvc coated
Specification
Specification List of Welded Wire Mesh: |
Opening | Wire Diameter |
In inch | In metric unit(mm) |
|
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Note: Standard roll length: 30m;width: 0.5m to 1.8m |
Welded Fencing Mesh Panel (In 0.5-5m Length, Width of 0.5-2.5m) |
Mesh | Wire Diameter |
(Inch) | (mm) | (mm) |
2×3 | 50×75 | 2.0/2.5/1.65 |
3×3 | 75×75 | 2.67/2.41/2.11/1.83/1.65 |
2×4 | 50×100 | 2.11/2.5 |
4×4 | 100×100 | 2.0/2.5 |
2×8 | 50×200 | 3.0/3.5/4.0/4.5/5.0 |
PVC Coated Welded Mesh |
Opening | Wire diameter (BWG) |
In inch | Metric unit(mm) |
|
1/2''×1/2'' | 12.7mm×12.7mm | 16,17,18,19,20,21 |
3/4''×3/4'' | 19.1mm×19.1mm | 16,17,18,19,20,21 |
1''×1'' | 25.4mm×25.4mm | 15,16,17,18,19,20 |
Application
Used in the industry ,agriculture ,construction,transport and
mining .
Such as machine protection cover ,ranch fender ,garden fender
,window protection fender ,passage fender ,fowl cage ,egg basket
and foodstuffs basket.
Packaging & Shipping
Packing:
1. In rolls,plastic bags or waterproof papers
2. Square wire mesh panels,packed into plastic bags and pallets.
