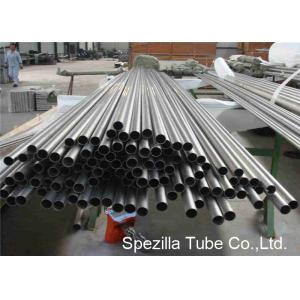

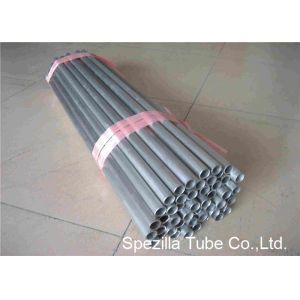

Pickling Titanium Pipe Cold Drawn Seamless Tubing ASTM B338 Grade 1 Custom Sizes

Pickling Titanium Pipe Cold Drawn Seamless Tubing , Titanium Round Tube ASTM B338 Grade 1

Description:

Commercially Pure Titanium Grade 1 is one of the softest and most ductile grades exhibiting the greatest formability. It has excellent corrosion resistance property, excellent weldability and is used in a wide variety of applications. This grade material is mainly used in marine and chemical industries where the parts are subjected to very harsh environments. This material is also used for fabricating anodes for cathodic protection applications.

Chemistry Typical:

Titanium: Balance

Iron: 0.20 max

Oxygen: 0.18 max

Carbon: 0.08 max

Nitrogen: 0.03 max

Hydrogen: 0.015 max

Residuals each 0.10 max, total 0.40 max

Physical Properties:

Density, 0.163 lbs/in³ , 4.51 g/cm³

Mean Coefficient of Thermal Expansion, in/in/°F (mm/m/°C):

70- 212°F (20- 100°C): 4.78 x 10^-6 (8.6)

Thermal Conductivity: BTU-in/h-ft-°F (W/m-°K):

At 70°F (21°C): 111 (16)

Modulus of Elasticity, ksi (MPa)

15.2 x 10³ (105 x 10³) in tension

Melting Point : 3040°F (1670°C)

Forms:

Coil – Strip, Foil, Ribbon

Wire – Profile, Round, Flat, Square

Mechanical Properties at Room Temperature:

Properties Annealed:

Ultimate Tensile Strength: 35 KSI min (240 MPa min )

Yield Strength (0.2% offset): 25-45 KSI (170-310 MPa )

Elongation: 24%

Properties: Tempered

Titanium Grade 1 can be cold rolled to various tempers. Contact Ulbrich Technical Service for additional information

Additional Properties:

Corrosion Resistance

Refer to NACE (National Association of Corrosion Engineers)for recommendations.

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.

Spezilla appreciates the opportunity to help you with your questions about our operations, our products, our services or any other aspect of our business. We understand the demands of placing orders and the need for fast quotes, so we guarantee a response in 24 hours or less.
