| Brand Name : | Wangtong |
| Model Number : | WT125S |
| Price : | negotiable |
| Payment Terms : | L/C, T/T, Western Union,Paypal |
| Supply Ability : | 10000pcs/month |
| Delivery Time : | 5-10 days upon order quantitities |
SFP+ 1.25G Fiber Optical Module 1310/1550nm 20/40/80/120KM Single mode Transceiver
Description
SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20/40/80/120km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Feature
●Supports 1.25Gbps/1.0625Gbps bit rates
●Duplex LC connector
●Hot pluggable SFP footprint
●1550nm DFB laser transmitter and PIN photo-detector
●Applicable for 40Km SMF connection
●Low power consumption, < 0.8W
●Digital Diagnostic Monitor Interface
●Compliant with SFP MSA and SFF-8472
●Very low EMI and excellent ESD protection
●Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 85 °C
Application
●Gigabit Ethernet
●Fiber Channel
●Switch to Switch interface
●Switched backplane applications

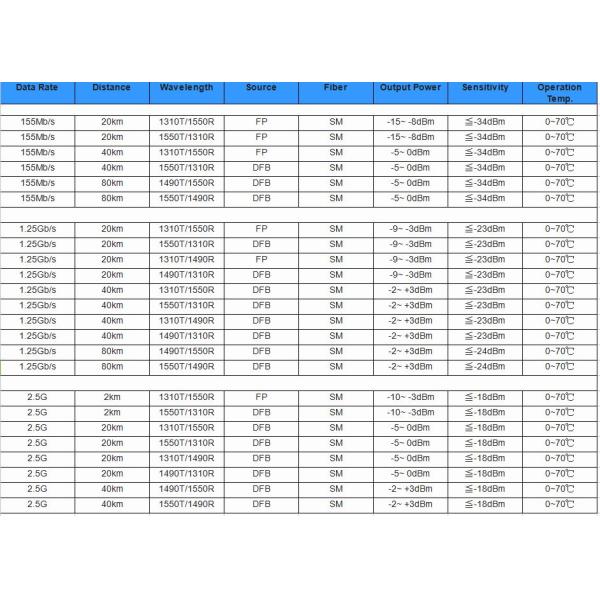

Parameter







|
