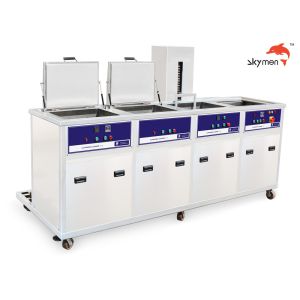

77L Ultrasonic Cleaning Tank Machine for Lab Instruments with
Filter, Dryer, Spray 28/40KHz
Manual cleaning & Ultrasonic cleaning Tank
Usually we use a water gun to flush the engine manually. It seems
easy operation and convenient, but many of dead angles are easily
to missed, and it’s also waste the time and manpower.
Ultrasonic cleaning is a convenient and fast way to save manpower
and time, it can Perfect for cleaning the longhole, finedraw and
shelter of piece part or workpiece, no need to touch cleaning fluid
by your hands.
You just need to put the engine cylinder head into the liquid of
machine, and turn on the power.
The machine will generate sound waves, when the sound waves travel
through the liquid, millions of tiny bubbles form and burst
continuously, the formation and implosion of these bubbles occurs
at rates of thousand of time per second, the bursting bubbles scrub
everywhere the liquid can penetrate. Intricate surfaces and
difficult access areas people can not reach manually.
More Related Applications Tank:
1. Removal of the rust-proof grease; Cleaning of measuring tools;
Oil removal and rust removal of mechanical parts; Cleaning of
engines, carburetors and automobile parts; Filter, filter mesh
dredge cleaning.
2. Medical equipment cleaning/ disinfection/ sterilization; test
utensils cleaning.
3. Remove oil and rust before plating; Cleaning before ion
plating;Phosphating; Removal of carbon deposits; Removing oxide
skins;Remove polishing paste; Metal workpiece surface activation
treatment.
4. Industrial ultrasonic cleaner machine for cleaning electronic
parts: ultrasonic cleaning PCB cleaner for cleaning circuit board.
Same series with different size for your choice for Ultrasonic
cleaning Tank:
| Model | Size of every tank | Tank Volume | Ultrasonic
Power | Heating Power of Ultrasonic tank | Heating Power of drying tank | Transducer |
| L*W*H (mm) | (L) | (W) | (W) | 750W | (pcs) |
| JP-4024GPH | 500X300X250 | 38L*4 | 600W | 1500W*2 | 750W | 24pcs |
| JP-4036GPH | 500X350X300 | 53L*4 | 900W | 1500W*2 | 750W | 36pcs |
| JP-4048GPH | 550X400X350 | 77L*4 | 1200W | 3000W*2 | 750W | 48pcs |
| JP-4060GPH | 550X450X400 | 99L*4 | 1500W | 3000W*2 | 750W | 60pcs |
| JP-4072GPH | 600X500X450 | 135L*4 | 1800W | 4500W*2 | 750W | 72pcs |
| JP-4096GPH | 700X500X500 | 175L*4 | 2400W | 6000W*2 | 750W | 96pcs |
| JP-4120GPH | 800X600X550 | 264L*4 | 3000W | 6000W*2 | 750W | 120pcs |
| JP-4144GPH | 1000X600X600 | 360L*4 | 3600W | 9000W*2 | 750W | 144pcs |
| JP-4216GPH | 1000X900X600 | 540L*4 | 5400W | 18000W*2 | 1100W | 216pcs |
| JP-4288GPH | 12000*1000*800 | 960L*4 | 7200W | 24000W*2 | 1500W | 288pcs |
Specification of Ultrasonic cleaning tank
| Model | JTS-4048GPH |
| 1st Tank Volume | 77L Ultrasonic Cleaning tank with filtration cycle system |
| 2nd Tank Volume | 77L Ultrasonic Rinsng tank |
| 3rd Tank Volume | 77L Spray tank |
| 4th Tank Volume | 77L Drying tank |
| 1st tank size | 550X400X350mm |
| 2nd tank size | 550X400X350mm |
| 3rd Tank size | 550X400X350mm |
| 4th tank size | 550X400X350mm |
| Transducers | 24pcs in 1st tank; 24pcs in 2nd tank |
| Ultrasonic Power | 1200W*2 |
| Heating Power of Ultrasonic tank | 3000W*2 |
| Heating Power of Drying tank | 750W |
| Frenquency | 28KHz/40KHz |
| Drying System | 1 set |
| Unit size | 2880*1050*950mm |
| Packing size | 2940*1110*1070mm |
| Timer | 0~99 minutes adjustable |
| Heater | Room temperature~99℃ adjustable |
| Material | SUS 304 default, can be SUS 316 |
| Power Supply | AC 220V 3 phase ; AC 380V 3 phase |
| N.W. | 500G |
| G.W. | 550KG Wrapped by film in wooden case |
| Lead time | 18 working days |
| Warranty | 1 year warranty period, technique support all time |
| Certificates | CE, RoHS, FCC, SGS |
| Advantage | Filter the dirty water; keep the water clear in tank; lower the
frequency of changing water |
Images of ultrasonic cleaning tank:
Clean effect of ultrasonic cleaning tank:
