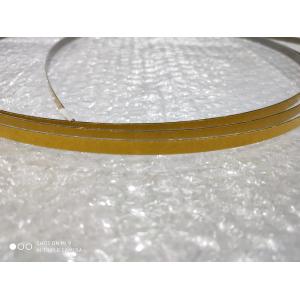

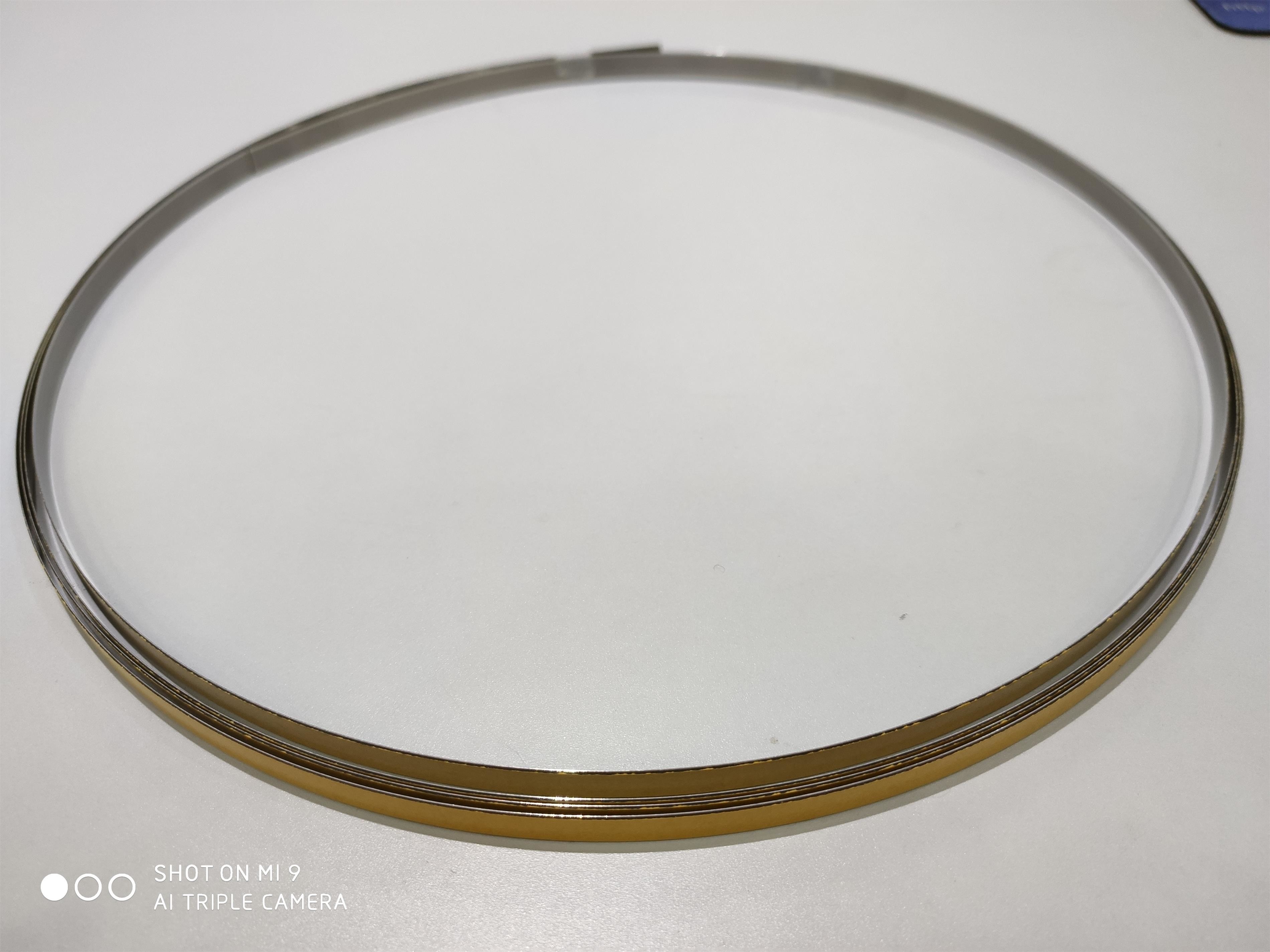

Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device

    Buy cheap Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device from wholesalers

    Buy cheap Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device from wholesalers
    • Buy cheap Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device from wholesalers
    • Buy cheap Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device from wholesalers
    • Buy cheap Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device from wholesalers
    • Buy cheap Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device from wholesalers
    • Buy cheap Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device from wholesalers

    Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device

    Ask Lasest Price
    Brand Name : UNIMETRO
    Model Number : SD2
    Price : Discussible
    • Product Details
    • Company Profile

    Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device

    Open type Linear scale High precision Grating ruler

    Open type Linear scale High precision Grating ruler Incremental 20um grating ruler for measurement equipment

    Product Introduction

    RUS grating ruler is an incremental 2um grating ruler designed to provide feedback for high precision linear measurement. It adopts UNIMETRO's most advanced interference grating line marking technology, and the grating line error is controlled below 40 nm. It uses high strength, corrosion-resistant special stainless steel to ensure long-term stable use.


    RUS Series Linear Scale ---- Ultra-long and High Precision Steel Strip Reflective Grating ruler

    System characteristics

    RUS High Precision Stainless Steel Gate Ruler is made of high precision, super hard, high elasticity and corrosion resistant special substrates.Excellent mechanical and chemical properties of the substrate ensure its long-term stability and reliability;RUS high-precision stainless steel grating ruler uses advanced marking technology to achieve fine marking of 20 micron spacing grating lines, and ensures the accuracy of less than 40 nanometers, +5 um/m, the ruler has its own backing glue, and can be quickly installed by sticker tool.

    ● High Precision: +5um/m ● Low expansion coefficient: 10.5um/m/~C
    ● High linearity: +2.5um/m ● Fast Installation: Provide tape tool, tape tape with back glue
    ● Small size: 0.2mm thick * 8mm wide ● Excellent materials: corrosion resistance, high hardness
    ● Ultra Long Size: 50m Ultra Long Order Length

    Parameters


    RU2 Reader Performance

    Resolution ratio

    Digital 1um,0.5um,0.2um, 0.1um,20nm,50nm

    Simulation 20um
    Minimum clock frequency of counter

    1M,2.5M,5M,10M

    Maximum speed

    12m/s Relating to resolution and minimum clock frequency of counter

    Electronic subdivision error

    40nm

    Automatic gain control

    Yes


    Specifications


    Specifications

    Coefficient of thermal expansion 10.5um/m/℃

    Grating Ruler Type

    Incremental type

    Weight

    12.6 g/m

    Pitch

    20um

    Material

    High Strength Stainless Steel

    Precision

    ±5um/m

    Environmental requirements

    Linearity

    ±2.5um/m Two-point correction is possible

    working temperature

    0℃~70℃

    Size

    H 0.2mm * W 8mm

    Working humidity

    RH < 95% (Non condensation)

    Size of gum

    H 0.1mm * W 6mm

    Storage temperature

    -20℃~70℃

    Supply length

    100mm~50m

    Storage humidity

    RH < 95% (Non condensation)


    Application






    Company Information

    Visual Measurement Machine
    Visual Measurement Machine
    Visual Measurement Machine
    Visual Measurement Machine

    Our Client&Agent

    Visual Measurement Machine
    Visual Measurement Machine
    FAQ
    Visual Measurement Machine Q1: Are you a factory or trading company ?
    Visual Measurement Machine A1: We are a factory and giving you the quickest reply in 24 hours.
    Visual Measurement Machine Q2: What's your company mainly in?
    Visual Measurement Machine A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
    Visual Measurement Machine Q3: How to Choose the Appropriate Specification?
    Visual Measurement Machine A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
    Visual Measurement Machine Q4: Do you accept customized service?
    Visual Measurement Machine A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
    Visual Measurement Machine Q5: What is your warranty period?
    Visual Measurement Machine A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
    improved a lot on some breakable parts. You can rest assured of our product quality.
