    Air Conditioning Room Seven Day Programmable Thermostat For Low Voltage 24V Power Supply

    Ask Lasest Price
    Brand Name : ODM
    Model Number : STN715
    Certification : CE/UL
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, /Paypal
    Supply Ability : 100000 pieces/month
    Delivery Time : 1-30 days
    • Product Details
    • Company Profile

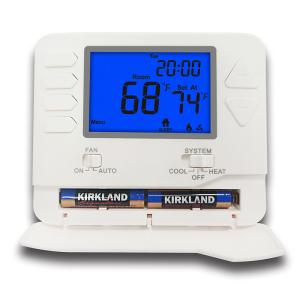

    Air Conditioning Room Seven Day Programmable Thermostat For Low Voltage 24V Power Supply

    Air Conditioning Room 7 Day Programmable Thermostat For Low Voltage 24V Power Supply


    Product Description :


    The STN715 low-pressure constant temperature is simple and easy to use. 1-week (5–1–1 day) programmable thermostat. You only need to adjust whether you are going out or asleep-times when setting the temperature, you don't need to heat or cool your home to get The best comfort-and HVAC equipment runs less.


    Product Information:


    --- Model :STN715--- Convenient wire color terminal block Buildings
    --- Multi stage --2 heat, 2 cool--- Room temperature calibration adjustment
    --- 5(Mo~Fr)/1(Sa)/1(Su) Programmable--- Universal sub-base
    --- 4.5 sq. inch display--- Easy wire coded terminal blocks
    --- Size:119.5 x 98 x 27.5MM--- Terminal Designations:RH, RC,C,W,W2,Y, Y2,G, B, O
    --- Easy menu driven programming--- can be mounted to wall or junction box

    --- Intuitive wake, leave, return, sleep

    programming icons.4 times / 4 temp

    --- Load rating: 1 Amp per terminal,

    1.5 amp maximum all terminals combined

    --- Easy access battery compartment--- Battery Or 24 VAC power supply
    --- Electric or gas configurable--- Indoor temperature correction adjustment
    --- Independent B & O terminal block--- Low battery indicator
    --- Separate heating and cooling swing (cycle rate)--- 5 minute compressor delay protection (selectable on or off)
    --- Air filter change indicator (selectable on or off)

    --- Display options: Fahrenheit or Celsius temperature display,

    12 or 24 hour clock

    Package Including:

    --- STN715 thermostat - 1pcs

    --- Color box - 1pcs

    --- Screws and anchor - 2pcs

    --- User manual - 1pcs

    --- Whether to include a battery - Not

    --- Do you need a battery? - Not


    Features:


    Display temperature range .......................................32℉ to 99℉ (1℃ to 40℃)
    Setpoint Range..........................................................44℉ to 90℉ (7℃ to 32℃)
    Stages........................................................................2 Heat / 2 Cool

    Programmability.........................................................5(Mo~Fr)/1(Sa)/1(Su) Programmable

    Or Sa~Su use on the whole week

    Program.................................................................... 4 times / 4 temp, “WAKE” “LEAVE” “RESTRN” “SLEEP”
    Load rating................................................................1.0Amp per terminal, 1.5Amp maximum all terminals combined
    Display accuracy........................................................±1℉(under 68℉)

    Power source.............................................................24 VAC(18 to 30 VAC), 50/60 Hz for hardwire (common wire)

    2*AAA 1.5V Alkaline batteries power

    Fan Switch..................................................................AUTO/ON
    System Switch............................................................HEAT/OFF/COOL
    Differential...................................................................0.2 to 2.0℉
    Low battery indicator...................................................Under 2.7V (without 24V power supply)
    Backlight......................................................................Blue/Orange/White light on for 15 seconds
    Dimensions of thermostat...........................................119.5 x 98 x 27.5MM
