    ASTM A36 Steel Workshop with Overhead Crane Rock Wool Insulation

    Ask Lasest Price
    Brand Name : Ruly Steel
    Model Number : Ruly0119
    Certification : SGS, BV, ISO
    Price : USD29-USD99 Per Square Meter
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : 20000 Square Meter Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    ASTM A36 Steel Workshop with Overhead Crane Rock Wool Insulation


    ASTM A36 Steel Structure Workshop With Overhead Crane Rock Wool Large Span


    Project Information:

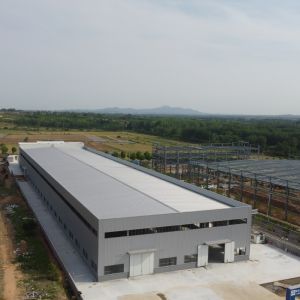

    The size of this Large Span Industrial Steel Frame Structure Workshop Buildings is 180m*90*12m. It has four spans, each span has two 5 Ton overhead crane.The distance between the column and the column is 8 meters. The structure of the workshop is welded with H-shaped steel, and different structures must be connected by high-strength bolts during the joining process. Wall and roof insulation panel is 75mm Glass wool sandwich panel.


    Specification of steel structure material:

    Item name

    SpecificationMaterial ParameterTechnical Treatment
    ColumnH shape steelQ235B,Q345BPaint or Hot dip galvanized
    BeamH shape,steel TrussQ235B,Q345BPaint or Hot dip galvanized
    BracingSteel rod,Steel pipe,Angle steelQ235B,Q345B
    PurlingC or Z shape, purling Thickness:1.8mm~3.0mmQ235B,Q346BHot dip galvanized
    Wall and roof panelGlass wool Sandwich panelSteel T=0.426~0.8mm,insulation T=50~150mmAlu-zinc 150g, Fluorocarbon paint
    DoorSliding or rolling doorSteel or Aluminum sheet,T=1.0~1.5mmPaint or Hot dip galvanized
    Windowalloy-Glass,Aluminium alloy-shutterT=1.0~2.0mmAlloy
    Lighting panelFRP, T=1.5mm or T=1.8mmCoefficient of thermal expansion:2.2x10-5/cm/cm/℃Light transmittance 85%
    VentilatorTurbine ventilator, and electric typeSteel,stainless steel,PCPaint or Hot dip galvanized,304
    GutterGalvanized or stainless steel plateT=2.0mmHot dip galvanized,304
    DownpipePVC pipe,Color steel pipe T=0.5mmΦ110,160,200Paint
    BoltOrdinary, high strength10.9S,4.8sHot dip galvanized
    Anchor boltSteel rod M24,M27 M30Q235B

    How to install:

    We will provide construction drawing for each project to guide installation. We will teach you the installation in our factory. We could dispatch our engineer to guide installation on site or we install it by our construction team.



    Our service:

    1. Structural steel fabrication, painting , galvanizing , pre-assembly

    2. Designing, fabrication and installation for Prefabricated steel structure building.

    3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing

    4. Engineering consulting service



    How to quote:

    The following question we need to know before making the price. Just feel free to fill what you know.

    1Location (where will be built?)_____country, area
    2Size: length*width*height_____mm*_____mm*_____mm
    3wind load (max. wind speed)_____kn/m2, _____km/h, _____m/s
    4snow load (max. snow height)_____kn/m2, _____mm
    5anti-earthquake_____level
    6brickwall needed or notIf yes, 1.2m high or 1.5m high
    7thermal insulationIf yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
    lower than that of the former
    8door quantity & size_____units, _____(width)mm*_____(height)mm
    9window quanity & size_____units, _____(width)mm*_____(height)mm
    10crane needed or notIf yes, _____units, max. lifting weight____tons; max. lifting height _____m
