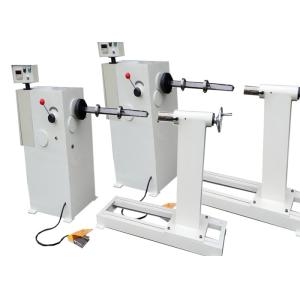

Oil Transformer Semi Automatic Coil Winding Machine With 5.5kw Motor Driven

    Buy cheap Oil Transformer Semi Automatic Coil Winding Machine With 5.5kw Motor Driven from wholesalers

    Buy cheap Oil Transformer Semi Automatic Coil Winding Machine With 5.5kw Motor Driven from wholesalers
    • Buy cheap Oil Transformer Semi Automatic Coil Winding Machine With 5.5kw Motor Driven from wholesalers

    Oil Transformer Semi Automatic Coil Winding Machine With 5.5kw Motor Driven

    Ask Lasest Price
    Brand Name : Zhutang
    Model Number : GDY-2T
    Certification : CE, SGS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per year
    Delivery Time : 20-25 days
    • Product Details
    • Company Profile

    Oil Transformer Semi Automatic Coil Winding Machine With 5.5kw Motor Driven


    Oil Transformer Semi Automatic Coil Winding Machine With 5.5kw Motor Driven


    General Information


    Oil Transformer Semi Automatic Coil Winding Machine With 5.5kw Motor Driven GDY-2T is one of our simple and cheap transformer coil winding machine, which can wind the coil with max height 2000kgs. Round wire and flat wire can be wound with this machine. The finished coil can be used as high voltage transformer coil or low voltage transformer coils. The winding machine is provided with:


    • Main strong steel frame
    • Flange, the diameter of flange is optional
    • Tailstock, can be moved to be suitable different molds
    • Foot pedal, to control the winding and switch the rotating direction
    • Counter, counting the numbers of turns when winding
    • Control board, for presetting needed parameters
    • Winding motor with 5.5kw
    • Gear box, several gears to transmit the torque
    • Electrical cabinet

    Main Features


    • Slow starting
    • Smooth running
    • Easy operating

    Main Parameters


    Typical standard specifications of GDY-2T are shown below, however these can be easily modified as requested.


    Shaft Height From Floor:1000mm
    Distance Between Ends:1200mm
    Flange Size:Optional
    Winding Speed:0-80rpm
    Speed Gear:2 pcs
    Max. Transverse Length:1000mm
    Counting Range:0-9999.9
    Max. Loading Capacity:2000KG
    Motor Power:5.5KW
    Colour:customized
    Machine Dimension(L*W*H):2800*700*1400mm
