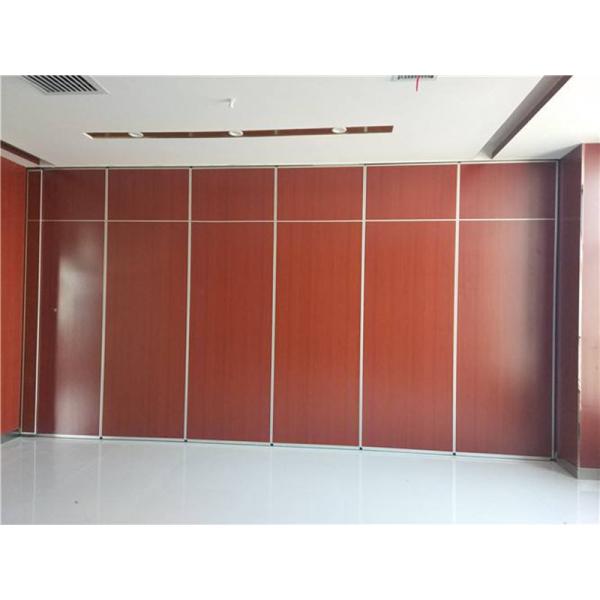

Movable Foldable Wall Partition System Office Soundproof Partition
Wall Price
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather,
Insulation board, Fireproof board, Wall paper, Vinyl, Painting,
etc. (Customized) |
Specification:
Soundproof partition Walls / Movable Partition Systems offer a
unique facility for utilising available space in the most practical
manner.
They allow a large space to be converted into smaller, separate
areas, which can be converted back to a large space with the
minimum of effort. Handled well and serviced regularly, they will
give many years of trouble free service.
Movable Wall can source, install and maintain a wide range of
Operable Walls , Moveable Partitions, Sliding Door Systems and Room
Dividers from the top manufacturers and extremely competitive
rates.
Soundproof partition wall feature:
Due to the movable partition walls flexibility and cost
effectiveness, it allows large rooms to be conveniently sub-divided
to maximize space utilization.
Operable wall material is customized built to suit the specified
requirement. Movable partition system can be made from aluminium,
gypsum, MDF, melamine-faced particleboard, plasterboard, plastic,
PVC, softwood, stainless steel or wood veneer.
Structure:
The basic production material of the movable partition is mdf board
panel and soundproof rock wool, so it has a good sound-absorbing
effect, which is what most customers pursue, because everyone likes
to live and work in a quiet environment, and use the activity
partition as a segmentation.
The movable partition wall can satisfy this problem. Different
employees of the company need to work in different environments and
the activities can solve this problem. It can effectively divide
and make the space look more complete, which is the first choice
for the company's decoration.
Aluminium profile details:
Track: The tracks are made from extruded 6063 - T5 anodized
aluminium. The track housing shall utilize grooves and interlocking
steel pins for positive alignment of adjacent track sections, and
shall be reinforced overhead by drop rod brackets. Aluminum track
housing shall include an integral nut slot to accept a hardened
square nut for attaching each drop rod bracket to the top of the
track.
Seals: Vinyl seal of butane rubber will be used as top and bottom
and as well as closure seals for the operable wall
system.Retractable seal drop will be 22.5 MM or 23 mm.
Our service:
1.Profession--We have professional sales staff. Any questions will
be replied within 24 hours.
2. Price--Because we are factory , so we can provide higher quality
and lower price products.
3 . Service--Easy and convenient to transport,we promise timely
delivery date, and good after-sale service.
4. Team--We have our own engineering department, according to your
request for your tailor-made for your product.
