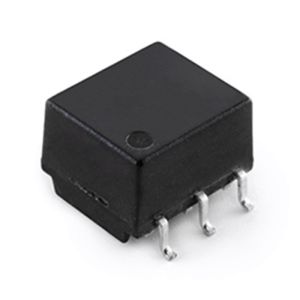

HMU2102NL / HMU2102NLT Dual Port BMS Transformer Modules SMT
| BMS Transformer,2-Ch, 1000 V, +125°C, AEC-Q200 Compliant, SMT,Rohs |
| Pulse Part Number | HMU2102NL / HMU2102NLT |
| Part Status | Active |
| Qualitication | Per AEC-Q200 |
| Application-Lan | BMS Transformer/Choke |
| Construction | Open Frame |
| Isolation Voltage | 4300 VDC For 30 Seconds |
| Number of channels | 2 |
| Package | SMT |
| Insulation Resistance | 400 Megaohms Minimum |
| Working Voltage | 1000 VDC For 15 Years |
| Inductance | 150µH Min , 370µH Max |
| Rohs Compliant | YES-RoHS-6 |
| Operating Temperature | - 40℃ TO +125℃ |
| Storage Temperature | - 50℃ TO +125℃ |
| Package Height (Inches) | 0.192 |
| Package Height (mm) | 4.88 |
| Package Length (Inches) | 0.583 |
| Package Length (mm) | 14.81 |
| Package Width (Inches) | 0.579 |
| Package Width (mm) | 14.7 |
| Turns Ratio | 1.00 + 2% |
| Polarity | Per Schematic |
Lan Transformer Modules
Wired LANs need pulse transformers for the transmission of
rectangular pulses. Like conventional transformers, pulse
transformers consist of a core with a primary and a secondary
winding. The galvanic separation serves to protect sensitive ICs
and networked devices from DC bias on the line.
Because they must transmit pulse waves that contain many different
frequency components resulting from the Fourier transform, their
cores must feature low losses and prevent pulse waveform
distortions across a wide frequency range. To meet these demands,
LINK-PP has developed of LAN pulse transformers using
high-performance.
In order to suppress the intrusion or outflow of common-mode noise,
LAN pulse transformers are normally combined with common-mode
chokes to form a pulse transformer module.
This module, in turn, is embedded in the RJ-45 connector to form a
connector module (Figure 1). Thus, for use in standard RJ-45
connectors, LAN pulse transformers must also be very compact.
