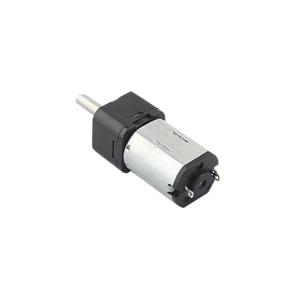

10mm mall geared stepper motor low speed plastic miniature DC
planetary gear motor
M10 -17 geared stepper motor planetary gear motor 10mm electronic
medical equipment gear motor DC motor, product model: N10 planetary
gear motor, rated power: 0.31 (W), rated voltage: 1.5-12 (V), rated
current: 0.035 (A), rated speed : 60-120 (rpm), Dimensions:
15.2*10*8.1 (mm)Beautiful appearance, small size, long life, low
noise technology.High energy saving rate, zero momentum, large
torque and high precision.
Technical Features
M10 -17 geared stepper motor planetary gear motor 10mm electronic
medical equipment gear motor DC motor, product model: N10 planetary
gear motor, rated power: 0.31 (W), rated voltage: 1.5-12 (V), rated
current: 0.035 (A), rated speed : 60-120 (rpm), Dimensions:
15.2*10*8.1 (mm)Beautiful appearance, small size, long life, low
noise technology.High energy saving rate, zero momentum, large
torque and high precision.
Typical Applications
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments
Camera
label printer
- Electtric Door Locks
Label stripping machine
ISBN printer
Specifications
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | CURRENT | TORQUE |
| (r/min) | (A) | (r/min) | (A) | (g.cm) | (W) | (A) | (g.cm) |
PG10-171G -M10 | 1.0-3.5 | 3.0V CONSTANT | 50 | 0.030 | 32.69 | 0.057 | 79.6 | 0.027 | 0.107 | 230 |
The above products are only representative models, we can customize
the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also
provide OEM services.
Torque Curve For Reference
Product Detail Presentation
our company:
Changzhou Vic-Tech Motor Techology Ltd. is a professional manufacturers and scientific research
institution, dedicated in brushless motor development, motor
application overall solutions, and motor processing and
manufacturing. Our company is located in ‘City of Chinese Micro
Motor’ Changzhou, Jiangsu Province. With beautiful scenery and
convenient traffic, only 1 km away from expressway, 2 km away from
railway station, 15 km away from airport. Changzhou is between two
cosmopolises, Shanghai and Nanjing, only 100km away from both
cities. Convenient logistics and timely information provide
conditions for our high efficient and satisfying service. Our
company has experience of researching and developing motor over
sereval decades, and we have our own developing team with
experienced professional engineers and electric experts. With
capacity to design new products, provide ralted solutions based on
customers’ specific requirements (including mechanical structure,
drive control, motor parameters etc.) At the same time, we have 4
manufacturer in Shenzhen, Changzhou and Dongguan to produce stepper
motors, permanent-magnet motors, micro motors, and DC motors, and
all of them have passed ISO9001:2008 international quality system
authentication. We have enough capability for your big orders.
