| Brand Name : | ZODO |
| Model Number : | ZD-3015 |
| Certification : | CE,FDA,ISO9001 |
| Price : | USD38000-42000$/SET |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 50SETS PER MONTH |
close type plasma full cover protection fiber laser cutting machine, 4020 2000w fiber laser cutter
| Model | 1530 |
| Working area (L*W) | 3000×1500mm |
| X-axis running area | 1500mm |
| Y-axis running area | 3000mm |
| Z-axis running area | 120mm |
| X/Y axis Repeated Position Precision | ±0.02mm |
| Machine Outlook | Open Type |
| Fiber Laser source | IPG 700w |
| Cross beam | Reinforced aluminum alloy crossbeam |
| Laser Head | Empower head |
| Transmission system | Dual-drive, precise rack and pinion |
| Guide rail | PMI OR hiwin from Taiwan |
| Rack&pinion | APEX from Taiwan |
| Speed Reducer | Motor reducer shimpo ,Japan |
| Sheet part Servo motor | Yaskawa from Japan, Y axis-- 850w*2, X axis--1000w*1, Z axis-- 400w*1 |
| Water chiller | Hanli water chiller or S&A |
| Control System | Bochu brand Cypcut control software |
| Solenoid valve | SMC from Japan |
| Computer | Industry computer |
| Cutting Head | Auto tracking and Auto height adjustment |
| Operating console | LCD screen with key board and mouse |
| SMOKE Extraction | 1500W blower for suction of fumes. |
Scrap removal system | Wheel mounted trays are provided below the cutting area to Scrap removal system remove the scrap or small work piece fallen below the work support grits. |
| Oil injector | Automatic lubricating system |
2.Application
Metal cutting, manufacturing of electrical switches, elevator manufacturing, household appliances manufacturing, kitchenware ,Instrument,decoration and so on
manufacturing, processing tools, and other machinery manufacturing and processing industries.

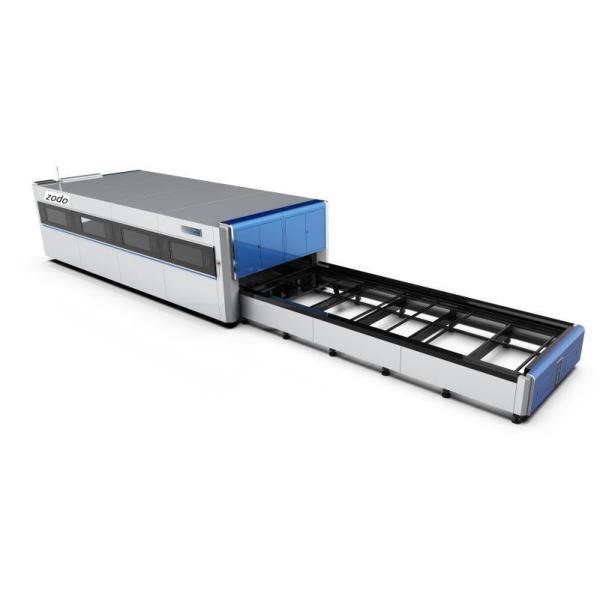

3.Machine pic




|
