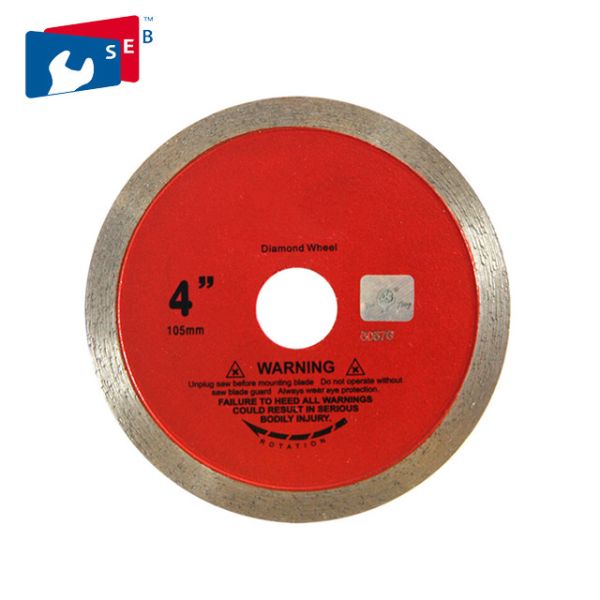

4 inch Diamond Circular Saw Blade for Concrete Marble Jewel Asphalt
Agate
Specification:
A diamond blade is a saw blade which has diamonds fixed on its edge
for cutting hard or abrasive materials. There are many types of
diamond blade, and they have many uses, including cutting stone,
concrete, asphalt, bricks, coal balls, glass, and ceramics in the
construction industry; cutting semiconductor materials in the IT
industry; and cutting gemstones, including diamonds, in the gem
industry.
Product: 4 inch 105mm diamond saw blade
| out size | hole diameter | segment diameter | style | finishing | max. | craft | service | packaging |
|---|
4''(105mm)
| 22.23mm | 1.8 x 12mm | wet cutting | painting | 80m/s | sintered | OEM | plastic card + white box |
Specification Range:
| Continuous Rim Diamond Blade |
| Application:Used for cutting granite, marble,porcelain and other
stones, with WET cutting. |
| Diameter (D) | Bore | Segment Height | Segment Thickness |
| Inch | MM | Inch | MM |
| 4" | 105 | 5/8" 7/8" | 16/20/22.23 | 7/10 | 1.8 |
| 4.3" | 110 | 5/8" 7/8" | 16/20/22.23 | 7/10 | 1.8 |
| 4.5" | 115 | 7/8" | 22.23 | 7/10 | 1.9 |
| 5" | 125 | 7/8" | 22.23 | 7/10 | 1.9 |
| 6" | 150 | 7/8" | 22.23 | 7/10 | 2 |
| 7" | 180 | 7/8"/1 | 22.23/25.4 | 7/10 | 2.2 |
| 8" | 200 | 7/8"/1 | 22.23/25.4 | 7/10 | 2.4 |
| 9" | 230 | 7/8"/1 | 22.23/25.4 | 7/10 | 2.4 |
| 10" | 250 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7/10 | 3 |
| 12" | 300 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7/10 | 3.2 |
| 14" | 350 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7/10 | 3.2 |
| 16" | 400 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7/10 | 3.4 |
There are other factors that should be considered when choosing a
diamond blade for a particular application. These include the type
(manufacturing method) of the blade, the availability of water in
the cutting process, the horsepower of the saw, and the acceptable
level of noise created by the saw. For example, if the horsepower
of a saw machine is large, the diamond concentration of the diamond
blade should be higher, or the bond should be harder. Higher
diamond concentration will decrease the impact on each single
diamond in working, while a harder bond will hold the diamonds more
firmly.
Packaging:
Plastic bag/blister card with outer white box/color box. Other
package required, please feel free to contact us!
