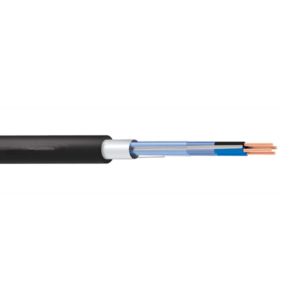

    PE / PVC Insulation Special Cables Instrumentation Cable 300 / 500V

    Ask Lasest Price
    Brand Name : CN CABLE
    Model Number : instrumentation cable
    Certification : CE ,BS,
    • Product Details
    • Company Profile

    PE / PVC Insulation Special Cables Instrumentation Cable 300 / 500V

    BS 5308 Rated voltage 300/500V PE or PVC insulation ,PVC Sheath,Instrumentation Cable


    APPLICATION:
    BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry. The signals can be of analogue, data or voice type and from a variety of transducers such as pressure, proximity or microphone. Part 1 Type 1 cables are generally designed for indoor use and in environments where mechanical protection is not required.


    Data

    P=pairs, T=triple, Q=quad

    NO. OF
    PAIRS/TRIPLE
    NOMINAL CROSS
    SECTIONAL AREA
    mm²
    NOMINAL OVERALL
    DIAMETER
    mm
    1P
    1P
    1P
    1P
    1P
    1T
    1T
    1T
    1T
    1T
    2P
    Q
    2P
    Q
    2P
    2P
    2P
    5P
    5P
    5P
    5P
    5P
    10P
    10P
    10P
    10P
    10P
    15P
    15P
    15P
    15P
    15P
    20P
    20P
    20P
    20P
    20P
    0.5
    0.75
    1
    1.5
    2.5
    0.5
    0.75
    1
    1.5
    2.5
    0.5
    0.5
    0.75
    0.75
    1
    1.5
    2.5
    0.5
    0.75
    1
    1.5
    2.5
    0.5
    0.75
    1
    1.5
    2.5
    0.5
    0.75
    1
    1.5
    2.5
    0.5
    0.75
    1
    1.5
    2.5
    7
    7.4
    7.4
    8.3
    9.1
    7.3
    7.7
    7.7
    8.9
    9.7
    7.9
    7.9
    8.4
    8.4
    8.4
    9.7
    10.7
    13.1
    13.8
    14.2
    16.4
    18.2
    17.2
    18.9
    18.4
    21.6
    25.1
    19.8
    21.9
    21.3
    25.4
    29.2
    22.3
    24.6
    24.4
    28.5
    39.8

    CONDUCTORS


    NOMINAL CROSS
    SECTIONAL AREA
    mm²
    CONDUCTOR
    CLASS
    MAXIMUM DC RESISTANCE OF CONDUCTOR AT 20°C
    ohms/km
    0.5
    0.75
    1
    1.5
    2.5
    5
    5
    1
    2
    2
    39
    26
    18.1
    12.1
    7.41

    ELECTRICAL CHARACTERISTICS
    Individually and Collectively Screened Cables


    NOMINAL CROSS
    SECTIONAL AREA
    mm²
    MUTUAL CAPACITANCE
    pF/m
    MINIMUM INSULATION
    RESISTANCE AT 20°C
    mohms/km
    MAXIMUM
    L/R RATIO
    µH/ohms
    Cables with Collective
    Screen Only
    1 Pair, 2 Pairs, 1 Triple
    Collectively Screened
    Cables with Individually
    Screened Pairs
    0.5
    0.75
    1
    1.5
    2.5
    75
    75
    75
    85
    85
    115
    115
    115
    120
    120
    115
    115
    115
    120
    120
    >5
    >5
    >5
    >5
    >5
    25
    25
    25
    40
    65

    CORE COLOURS

    PAIR NO.A WIREB WIRE
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    Black
    Black
    Blue
    Black
    Blue
    Green
    Black
    Blue
    Green
    Brown
    Black
    Blue
    Green
    Brown
    White
    Black
    Blue
    Green
    Brown
    White
    Red
    Black
    Blue
    Green
    Blue
    Green
    Green
    Brown
    Brown
    Brown
    White
    White
    White
    White
    Red
    Red
    Red
    Red
    Red
    Orange
    Orange
    Orange
    Orange
    Orange
    Orange
    Yellow
    Yellow
    Yellow


    assd
