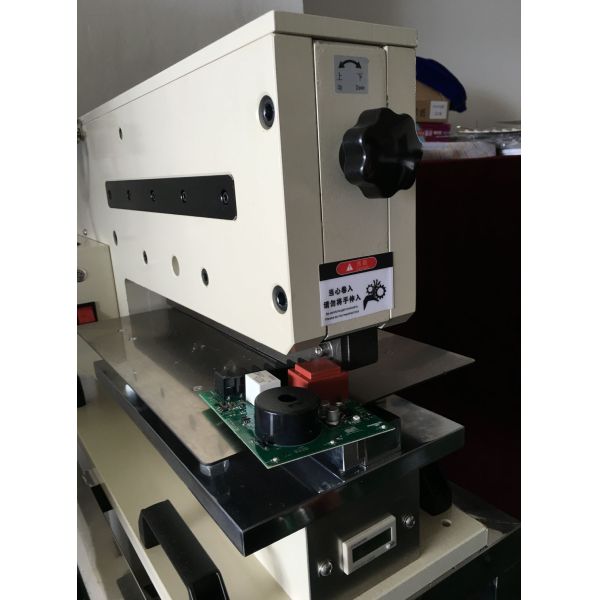

Pneumatic guillotine PCBA /FR4 PCB Depaneling / Depaneler, V-CUT MC
PCB Separtor / PCB Cutter YSVC-2
Specification :
| Maximum length of the board: | 300mm / 400mm |
| Package Size: | 720mm(L)*300mm(W)*440(H) |
| Thickness: | 0.50~3.5mm |
| Power supply: | 220VAC / 110V |
| Working air pressure: | 0.4——0.6Mpa |
| Weight: | 189 kg |
| Scope of application: | All V-CUT SMD PCB board |
Characteristics
1. The rate of segmentation is 1 separation per second, and is
controled by the pedal pneumatic switch .
2. Cutting knife group as a passive start, can be safely grasp
cutting line and its position; cutting stress is small, and not
easy to form the cracking phenomena.
3. Non roller (roller cutter, samtech cutting) cutting, no dust, no
motor drive, no carbon pollution.
4. Non friction type cutting , no residual metal.
5. Blade using warranty 200000/ no power supply, so there is no
loss of electrical products, and no replacement.
6. Cutting tool designs by the own company , does not need to
import and with high effective .
7. By using of 4-5KG air compressor, it can be used unneccessary a
specific cutting site; And the appearance of the machine maintains
by wiping oil avoiding rusting.
Specifications:
| Model: | YSVC-2 |
| The Longest Minimize | 330mm |
| Size: | 620mm x 230mm x 400mm |
| Minimize thickness: | 0.3-3.5mm |
| Machine Weight: | 165kg |
Competitive Advantage:
1. YSVC-2 Pcb depanelizer original manufacturers, price concessions
2. Day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
Working video : https://www.youtube.com/watch?v=EMy0UmB1CFw
