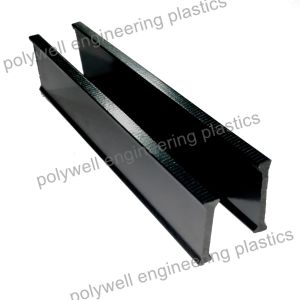

Polyamide PA66 GF25 Thermal Break Profile Insulation Strip for Aluminium Window

    Buy cheap Polyamide PA66 GF25 Thermal Break Profile Insulation Strip for Aluminium Window from wholesalers

    Buy cheap Polyamide PA66 GF25 Thermal Break Profile Insulation Strip for Aluminium Window from wholesalers
    • Buy cheap Polyamide PA66 GF25 Thermal Break Profile Insulation Strip for Aluminium Window from wholesalers
    • Buy cheap Polyamide PA66 GF25 Thermal Break Profile Insulation Strip for Aluminium Window from wholesalers
    • Buy cheap Polyamide PA66 GF25 Thermal Break Profile Insulation Strip for Aluminium Window from wholesalers
    • Buy cheap Polyamide PA66 GF25 Thermal Break Profile Insulation Strip for Aluminium Window from wholesalers
    • Buy cheap Polyamide PA66 GF25 Thermal Break Profile Insulation Strip for Aluminium Window from wholesalers
    • Buy cheap Polyamide PA66 GF25 Thermal Break Profile Insulation Strip for Aluminium Window from wholesalers
    • Buy cheap Polyamide PA66 GF25 Thermal Break Profile Insulation Strip for Aluminium Window from wholesalers

    Polyamide PA66 GF25 Thermal Break Profile Insulation Strip for Aluminium Window

    Ask Lasest Price
    Brand Name : Polywell
    Model Number : I,C,T,CT,HK
    Supply Ability : 100000 meters per day
    Price : $0.20 - $0.4 / Meter
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 15-20 working days
    Certification : SGS
    • Product Details
    • Company Profile

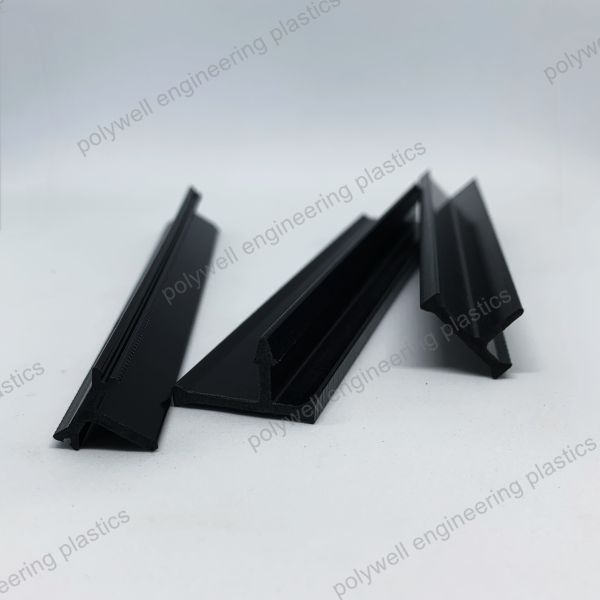

    Polyamide PA66 GF25 Thermal Break Profile Insulation Strip for Aluminium Window

    PA66 GF25 Thermal Bridging Insulation Strip Used In Aluminium Frame Fixed Glass Window

    What are the different types of polyamides?

    Polyamide (PA) Polyamides are among the most important and proven technical thermoplastics, known for their heat resistance, stiffness and high mechanical stability Polyamides can be classified into different types, with PA 6, PA 6.6 and PA 12 most established on the market.

    Our polyamide strips are made of PA6.6 reinforced by 25% fiberglass.

    What are the different types of thermal barriers?

    Currently, there are two principal types of thermal barriers: polyamide thermal barrier strip and pour & debridge (P&D).

    Our company only produce polyamide thermal barrier strip.

    What is a polyamide thermal barrier?

    The polyamide strip is a mouldable composite material. Its fibers are oriented in all three dimensions to ensure appropriate strength. As such, manufacturers can use these strips across all types of fenestration, including oversized and impact-resistant systems. Therefore, polyamide thermal barriers are the best for thermal break windows.

    Advantages

    • excellent electrical insulation
    • high toughness
    • good wear resistance
    • high quality
    • competitive price
    • free sample support and short lead time
    • high mechanical strength
    • high softening point
    • self-lubrication
    • long-term work at higher temperatures
    • high CTI value
    • low smoke and toxicity characteristics

    Application

    It is mainly used in insulation broken bridge aluminium products, helping to reduce heat loss or heat gain through the aluminum, and has better performance in terms of power usage.

    Product Performance

    Item

    Unit

    GB/T 23615.1-2009

    PW-Technical specification

    Density

    g/cm3

    1.3±0.05

    1.28-1.35

    Linear expansion coefficient

    K-1

    (2.3-3.5)×10-5

    (2.3-3.5)×10-5

    Vicat softening temperature

    ºC

    ≥230ºC

    ≥233ºC

    Melting point

    ºC

    ≥240

    ≥240

    Testing for tensile cracks

    -

    No cracks

    No cracks

    Shore hardness

    -

    80±5

    80-85

    Impact strength(Unnotched)

    KJ/m2

    ≥35

    ≥38

    Tensile strength(longitudinal)

    MPa

    ≥80a

    ≥82a

    Elasticity modulus

    MPa

    ≥4500

    ≥4550

    Elongation at break

    %

    ≥2.5

    ≥2.6

    Tensile strength(transverse)

    MPa

    ≥70a

    ≥70a

    High temperature tensile strength(transverse)

    MPa

    ≥45a

    ≥47a

    Low temperature tensile strength(transverse)

    MPa

    ≥80a

    ≥81a

    Water resistance tensile strength(transverse)

    MPa

    ≥35a

    ≥35a

    Aging resistance tensile strength(transverse)

    MPa

    ≥50a

    ≥50a

    1. Sample water content less than 0.2% by weight.
    2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
    3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.

    Package & Delivery

    Packaging details: For all specifications/shapes, they could be packaged in linear, the length will be 6 meters, or customized.

    For the Shape "I", "C", and some simple shapes, they can be packed in rolls. 400-600 meters/roll.
    Delivery details: Shipped in 5-7 working days after payment

    Our Service

    Before sales

    1. introduce products in detail
    2. recommend suitable solutions
    3. provide with reference information

    During manufacturing

    1. provide with layout and engineering conditions
    2. inform the processing status
    3. offer related documents

    After Sales

    1. provide installation, commissioning and training
    2. offer spare parts
    3. Provide with necessary technical support

    FAQ

    • About Sample

    • Sample is Free, but the express fee is collect or you pay us the cost in advance.

    • About MOQ

    • For the polyamide granules, MOQ is 1 ton. For the thermal break strips, MOQ is 5,000 meters.

    • About Customizing Special shape of polyamide Profiles and its period

    • You can customize the special shape of polyamide strips. If we didn't meet this shape before, we will make new mold for you, and you should pay for the mold.

    • About Customizing Package Style and Marks

    • You can customize the package style and marks.

    • Why your price is higher/lower than others?

    • For years specializing in polyamide granules and thermal break strips has bestowed us experienced and skilled technical workers and production workers. We promise the stability of products and the high-quality of raw material. Furthermore, we can provide technical support from raw material to the final appliance. Believe in that you can get better products and service with lower price.

    • About warranty

    • We are confident in our products, and pack them well before delivery, so usually you will receive your order in good condition. . Any quality issue, we will deal with it immediately.
