    Black Nylon 66 Polyamide Thermal Break Thermal Barrier Tape For Plastic Extrusion Profiles

    Ask Lasest Price
    Brand Name : Polywell
    Model Number : I,C,T,CT,HK
    Supply Ability : 100000 meters per day
    Price : $0.20 - $0.4 / Meter
    Delivery Time : 15-20 working days
    Payment Terms : T/T, Western Union, MoneyGram
    Certification : SGS
    • Product Details
    • Company Profile

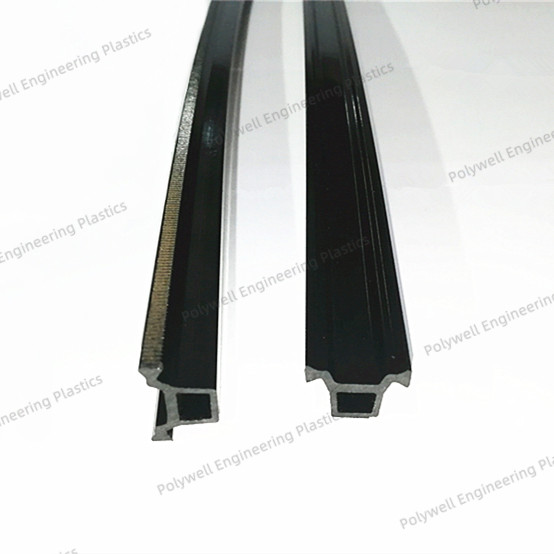

    Black Nylon 66 Polyamide Thermal Break Thermal Barrier Tape For Plastic Extrusion Profiles

    Black Nylon 66 Polyamide Thermal Break Thermal Barrier Tape For Plastic Extrusion Profiles

    The polyamide strip is a mouldable composite material. Its fibers are oriented in all three dimensions to ensure appropriate strength. As such, manufacturers can use these strips across all types of fenestration, including oversized and impact-resistant systems. Therefore, polyamide thermal barriers are the best for thermal break windows.


    polyamide strips can thermally break aluminum extrusion assemblies

    Structural insulating polyamide strips have been utilized for thermally breaking aluminum extrusion assemblies for over 30 years and have been in use in north america for over a decade. Polyamide strips are available with many configurations to meet different performance specifications.

    Product Performance

    Item

    Unit

    GB/T 23615.1-2009

    PW-Technical specification

    Density

    g/cm3

    1.3±0.05

    1.28-1.35

    Linear expansion coefficient

    K-1

    (2.3-3.5)×10-5

    (2.3-3.5)×10-5

    Vicat softening temperature

    ºC

    ≥230ºC

    ≥233ºC

    Melting point

    ºC

    ≥240

    ≥240

    Testing for tensile cracks

    -

    No cracks

    No cracks

    Shore hardness

    -

    80±5

    80-85

    Impact strength(Unnotched)

    KJ/m2

    ≥35

    ≥38

    Tensile strength(longitudinal)

    MPa

    ≥80a

    ≥82a

    Elasticity modulus

    MPa

    ≥4500

    ≥4550

    Elongation at break

    %

    ≥2.5

    ≥2.6

    Tensile strength(transverse)

    MPa

    ≥70a

    ≥70a

    High temperature tensile strength(transverse)

    MPa

    ≥45a

    ≥47a

    Low temperature tensile strength(transverse)

    MPa

    ≥80a

    ≥81a

    Water resistance tensile strength(transverse)

    MPa

    ≥35a

    ≥35a

    Aging resistance tensile strength(transverse)

    MPa

    ≥50a

    ≥50a

    1. Sample water content less than 0.2% by weight.
    2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
    3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.

    Characteristic of PA strips

    According to different storage time and ambient climate, the dimension of PA strips will increase slightly because of the natural moisture absorption. And the mechanical properties will change slightly too.

    So, PA strips should be transported and stored under dry conditions away from the influence of weather. (rain, direct sunlight etc.)


    Advantages & Application

    Aluminium window has the disadvantage of limited thermal insulation. Its Uf value, which indicates the amount of heat that passes through a window profile, is simply too high. If your windows have standard aluminium profiles, your home may develop condensation, or even mould. Besides the resulting high repair costs, household mould also aggravates respiratory problems such as asthma.

    But that disadvantage has now been completely eliminated if you install polyamide strips in aluminum windows. In fact, thanks to the development of a new invention known as thermal break profiles, aluminium is at least as good as its competitors. In these profiles, produced with specialized machines, a polyamide strip is placed between the inner and outer sections of the profile.


    Polyamide is a plastic that insulates more than 500 times better than aluminium, so thermal break profiles have a much lower Uf value - and transmit much less heat or cold. As a result, your home stays warmer in winter, while keeping the heat outside more easily in summer.

    Our Service

    Before sales

    1. introduce products in detail
    2. recommend suitable solutions
    3. provide with reference information

    During manufacturing

    1. provide with layout and engineering conditions
    2. inform the processing status
    3. offer related documents

    After Sales

    1. provide installation, commissioning and training
    2. offer spare parts
    3. Provide with necessary technical support

    FAQ

    • About Sample
    • Sample is Free, but the express fee is collect or you pay us the cost in advance.
    • About MOQ
    • For the polyamide granules, MOQ is 1 ton. For the thermal break strips, MOQ is 5,000 meters.
    • About Customizing Special shape of polyamide Profiles and its period
    • You can customize the special shape of polyamide strips. If we didn't meet this shape before, we will make new mold for you, and you should pay for the mold.
    • About Customizing Package Style and Marks
    • You can customize the package style and marks.
    • Why your price is higher/lower than others?
    • For years specializing in polyamide granules and thermal break strips has bestowed us experienced and skilled technical workers and production workers. We promise the stability of products and the high-quality of raw material. Furthermore, we can provide technical support from raw material to the final appliance. Believe in that you can get better products and service with lower price.
    • About warranty
    • We are confident in our products, and pack them well before delivery, so usually you will receive your order in good condition. . Any quality issue, we will deal with it immediately.
