| Model Number : | PW-60/70/80 |
| Brand Name : | Polywell |
| Price : | USD 15,000- 18,000 / Set |
| Delivery Time : | 30-38 Working Days |
| Payment Terms : | T/T |
| Certification : | SGS |
| Supply Ability : | 30 Sets per Month |
Product Application

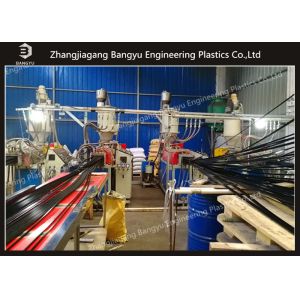

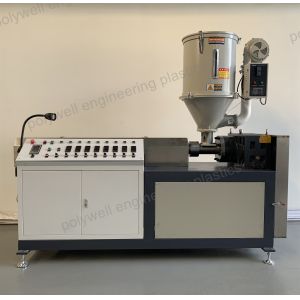

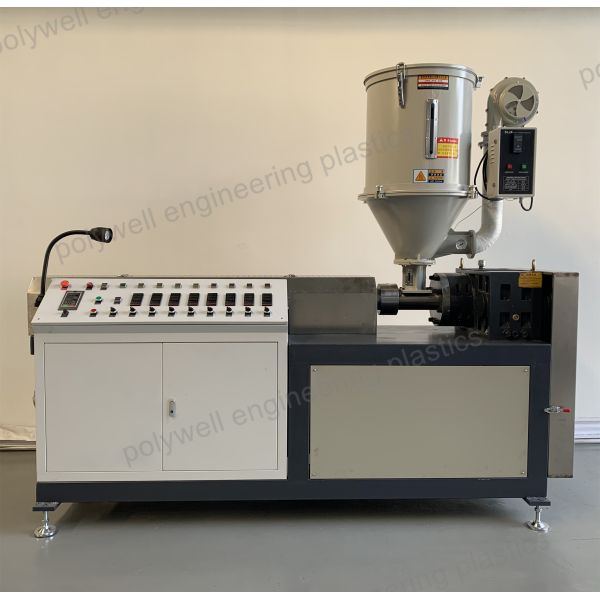

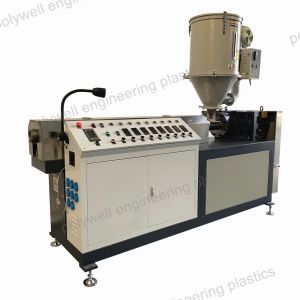

Automatic extruding machine is for polyamide thermal break strips used in aliminun windows and doors. Many customer use thermal break aluminum profile to do big air conditioner to keep heat of cold air, then make use of energy saving. We provide quality extruder machine along with various molds and raw material-nylon granules, and also the subsequent technical assistance. This machine includes raw material auto loading device, heating system, thermal break strip extruder and strip drawing device.

1. The main part of machinery adopts high-quality cemented carbide screw to ensure the high plasticization of PA66+GF25. The main engine is energy-saving and the speed is stable. The speed of the main and auxiliary machines can be synchronized.
2. The die head is made according to German advanced technology, with short runner and no dead angle. The surface of the heat insulating strip is bright, with accurate tolerance and high strength.
3. Using imported temperature control meter, one meter controls one temperature control system to control the temperature accuracy to ±1C°.
4. Operating floor: stainless steel strip placement slot. Adjustable length 6 meters
5. Winding machine: The torque motor control system is used to adjust the winding tension. 500 meters or 1000 meters per roll.
6. The barrel is heated by stainless steel heater, withstanding 400 V.
7. The professional dryer makes the material and the hot air convect evenly, and the drying uniformity is good. Its thermal insulation structure prevents heat dissipation and promotes energy saving.


1. Used for thermal break aluminum window, door, curtain and walls
2. Many customer use thermal break aluminum profile to do big air conditioner to keep heat of cold air, then make use of energy saving

1. Introduce products in detail
2. Recommend suitable solutions
3. Provide with reference information
1. Provide with layout and engineering conditions
2. Inform the processing status
3. Offer related documents
1. Provide installation, commissioning and training
2. Offer spare parts
3. Provide with necessary technical support
Packaging | |
Weight | 1Ton |
Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
