    C Shape 25mm PA66 Polyamide Thermal Break Strips For Aluminium Windows And Doors

    Product Description

    Over the years, polyamide heat-insulation strip has been widely used in glass curtain walls due to its good properties and low cost. Especially Polyamide 66 reinforced by 25% glass fiber thermal break strips, they are inserted into aluminum window, door and facade profile for thermal insulation.

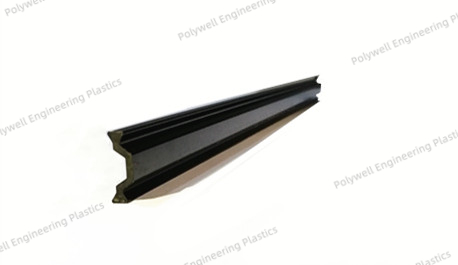

    The shape C polyamide thermal insulation strip can prevent the window frame from dust and water, also has a more beautiful appearance than the shape I, but not so firm.
    For the shape C, we can provide the following size or customize according to customers' requirements.

    Product Parameters

    Name

    Specification

    Brand

    Material

    Polyamide Granules

    PA66 GF25

    Polywell

    PA66, Fiberglass


    Item

    Unit

    GB/T 23615.1-2009

    PW-Technical specification

    Density

    g/cm3

    1.3±0.05

    1.25-1.35

    Linear expansion coefficient

    K-1

    (2.3-3.5)×10-5

    (2.3-3.5)×10-5

    Vicat softening temperature

    ºC

    ≥230ºC

    ≥230ºC

    Melting point

    ºC

    ≥240

    ≥240

    Testing for tensile cracks

    -

    No cracks

    No cracks

    Shore hardness

    -

    80±5

    76-85

    Impact strength(Unnotched)

    KJ/m2

    ≥35

    ≥35

    Tensile strength(longitudinal)

    MPa

    ≥80a

    ≥80a

    Elasticity modulus

    MPa

    ≥4500

    ≥4500

    Elongation at break

    %

    ≥2.5

    ≥2.5

    Tensile strength(transverse)

    MPa

    ≥70a

    ≥70a

    High temperature tensile strength(transverse)

    MPa

    ≥45a

    ≥45a

    Low temperature tensile strength(transverse)

    MPa

    ≥80a

    ≥80a

    Water resistance tensile strength(transverse)

    MPa

    ≥35a

    ≥35a

    Aging resistance tensile strength(transverse)

    MPa

    ≥50a

    ≥50a

    1. Sample water content less than 0.2% by weight.
    2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.

    3.The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.


    Advantages

    1.Effectively increased thermal in the system property insulation.
    2.Reduces condensation on the window.
    3.Sound insulated.
    4.Improve comfort and living condition.
    5.Possible double color coatings provide better aesthetic effect.
    6.Various shapes will be designed for the customer's requirements.
    7.The working temperature of the thermal insulation strip is 220°C, Melting Point reaches to 246°C. This enables coating process after assembly of composite profiles.
    8.High corrosion-resistance, weather-resistance, heat-resistance, alkali-resistance and long life of usage.
    9.linear thermal dilation coefficient almost identical to that of aluminium profiles.


    Storage Conditions

    The strips will be stored in the ventilated and dry environment, horizontally placed, paying attention to waterproof, keeping away from the heat source, avoiding heavy pressure and the contact with acid, alkali as well as organic solvent.


    Packages

    For all specifications/shapes, they could be packaged in linear, the length will be 6 meters, or customized.
    For the Shape "I", "C", and some simple shapes, they can be packed in rolls. 400-600 meters/roll.

    Delivery

    We have the production capacity of 100000 meters per day. For common specifications, we have molds, and will be shipped in 10-20 working days after receiving the deposit.
