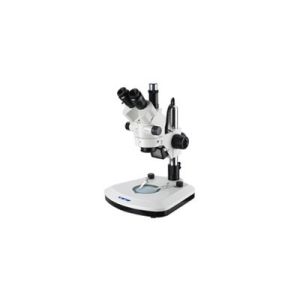

Zoom Stereo microscope
High quality optical system, and optical components coated with
special coating, created a high-quality optical system.
Standard magnification 7X~45X. Use optional auxiliary lens, the
magnification can be 3.5X~180X.
Long working distance to create enough space for the users.
Suit to ergonomic design, feel less fatigue when long time use.
| Eyepiece | Wide field high eyepiont eyepiece WF10X/20mm,
WF15X/15mm,WF20X/10mm(can mount micrometer) |
| Wide field high eyepiont eyepiece and diopter adjustment eyepiece
WF10X/20mm,WF15X/15mm,WF20X/10mm(can mount micrometer) |
| Viewing Head | STM-BN-SZMN7045:Binocular head, 45° inclined, 360°rotatable, zoom
objective 0.7X-4.5X, working distance 100mm. inter-pupillary range
54~76mm, both two tube diopter adjustment(±5) |
| STM-TN-SZMN7045:Trinocular head, 45° inclined, 360°rotatable, zoom
objective 0.7X-4.5X, working distance 100mm. inter-pupillary range
54~76mm, both two tube diopter adjustment(±5) |
| STM-BN-SZMN645: Binocular head, 45° inclined, 360°rotatable, zoom
objective 0.7X-4.5X, working distance 100mm. inter-pupillary range
54~76mm, fixed eyepiece tube ( used for diopter adjustment
eyepiece) |
| STM-TN-SZMN645:Trinocular head, 45° inclined, 360°rotatable, zoom
objective 0.7X-4.5X, working distance 100mm. inter-pupillary range
54~76mm, fixed eyepiece tube ( used for diopter adjustment
eyepiece) |
| STM-DG-DVSZMN645: Digital head with LCD screen. 45° inclined,
360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm.
inter-pupillary range 54~76mm, fixed eyepiece tube ( used for
diopter adjustment eyepiece) 8 inch LCD screen, resolution ratio
800*600,CCD 520 TVLINES |
| Auxiliary Lens | 0.5X/165mm. 0.75X/105mm. 1.5X/45mm. 2X/30mm. |
| Focus | SZMA1 focus arm, two focusing knobs are with tension adjustable,
adjust range 50mm. |
| SZMNA1 focus arm, two focusing knobs are with tension adjustable,
adjust range 50mm. |
| SZA2 industry bound focus arm 1 (industry exclusive use) |
| SZA3 industry bound focus arm 2 (industry exclusive use) |
| Stand | B4 pillar type sector plain stand |
| SZMST2 pillar type transmission stand, top & bottom halogen
illuminator 12V15W (brightness adjustment). |
| SZMST3 pillar type transmission stand, top illuminator with 12V15W
halogen bulb, brightness adjustment. bottom illuminator with 7W
fluorescent light, fixed brightness |
| SZSTL1 single arm universal stand |
| SZSTL2 double arm universal stand |
| Other light source | Ring light/LED/Fiber |
| Photo device | Photo tube(with PK mount),4X photo eyepiece |
| TV device | 0.35X/0.5X/1.0X C-mount adapter |
| Others | Precision measurement platform, dark field condenser, jewelry clip |
Application field of lylight stereo microscope
Stereo microscope operation is simple, the magnification is
generally in the 7X-42X, the maximum magnification of 180X. Stereo
microscope is the most widely used in the use, the main purposes
are as follows:
1.Study on the animal science, botany, entomology, histology,
mineralogy, geology, archaeology and dermatology.
2 in the textile industry, for the inspection of raw materials and
cotton fabric.
3 in the electronics industry, as a transistor spot welding,
inspection, etc..
4 various kinds of materials, such as the cracks of the cracks, the
corrosion of the surface and other surface phenomena.
5 in the manufacture of small precision parts, used for machine
tool equipment, working process observation, precision parts
inspection and assembly tools.
6 lens, prism or other transparent material surface quality, as
well as the precision of the scale of the examination.
7 identify cions is true or false .
8 widely used in textile products, chemical, chemical, plastic
products, electronic manufacturing, machinery manufacturing,
pharmaceutical manufacturing, food processing, printing industry,
higher education institutions, archaeological research and many
other fields.
