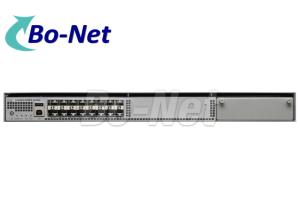

Cisco WS-C3850-12S-S Stackable 12 SFP Ethernet ports IP Base
managed network switch
Integrated wireless controller capability with:
Up to 40G of wireless capacity per switch (48-port RJ45 models)
Support for up to 100 access points and 2000 wireless clients on
each switching entity (switch or stack)
24 and 48 10/100/1000Mbps data PoE+ and Cisco UPOE models with
Energy-Efficient Ethernet (EEE)
24 and 48 100Mbps/1/2.5/5/10 Gbps Cisco UPOE models with
Energy-Efficient Ethernet (EEE)
12- and 24-port 1 Gigabit Ethernet SFP-based models
12- and 24-port 1/10 Gigabit Ethernet SFP+-based models
48-port 1/10 Gigabit Ethernet SFP+ model with 4 fixed 40 Gigabit
Ethernet QSFP+ uplinks
Cisco StackWise-480 technology provides scalability and resiliency
with 480 Gbps of stack throughput
Cisco StackPower technology provides power stacking among stack
members for power redundancy
Five optional uplink modules with 4 x Gigabit Ethernet, 2 x 10
Gigabit Ethernet, 4 x 10 Gigabit Ethernet, 8 x 10 Gigabit
Ethernet4, or 2 x 40 Gigabit Ethernet QSFP+ports
Dual redundant, modular power supplies and three modular fans
providing redundancy
Full IEEE 802.3at (PoE+) with 30W power on all copper ports in 1
Rack Unit (RU) form factor
Cisco UPOE with 60W power per port in 1 Rack Unit (RU) form factor
IEEE 802.3bz (2.5/5 G/s BASE-T) to go beyond 1 Gb/s with existing
Cat5e and Cat6
IEEE 802.1ba AV Bridging (AVB) built-in to provide better AV
experience for including improved time synchronization and QoS
Software support for IPv4 and IPv6 routing, multicast routing,
modular Quality of Service (QoS), Flexible NetFlow (FNF), and
enhanced security features
Single universal Cisco IOS Software image across all license
levels, providing an easy upgrade path for software features
Cisco DNA services delivered through Cisco ONE Software, providing
simplified, high-value solutions with license portability and
flexibility
Support for AES-256 with the powerful MACSEC 256-bit for SFP+ and
Multigigabit models and 128-bit encryption algorithm available on
all models
Enhanced Limited Lifetime Warranty (E-LLW) with Next Business Day
(NBD) advance hardware replacement and 90-day access to Cisco
Technical Assistance Center (TAC) support
| Product Code | WS-C3850-12S-S |
| Description | Cisco Catalyst 3850 12 Port GE SFP IP Base |
| Feature Set | IP Base |
| Network SFP uplink module selection | C3850-NM-4-1G,C3850-NM-2-10G, |
| Ports | 12 ports of SFP Ethernet fiber connection with Flexible Netflow feature |
| Maximum stacking number | 9 |
| Stack bandwidth | 480 Gbps |
| Forwarding Performance | 68.4 Mpps |
| Switching Capacity | 68 Gbps |
| RAM | 4 G |
| Flash Memory | 2 G |
| Dimensions | 44.5 cm x 45.00 cm x 4.45 cm |
| Package Weight | 17.49 Kg |
