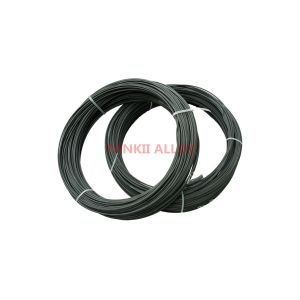

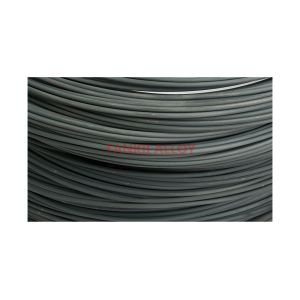

14AWG Thermocouple Wire / Chromel Alumel Wire With Oxidized Surface IEC Class 1

    Buy cheap 14AWG Thermocouple Wire / Chromel Alumel Wire With Oxidized Surface IEC Class 1 from wholesalers

    Buy cheap 14AWG Thermocouple Wire / Chromel Alumel Wire With Oxidized Surface IEC Class 1 from wholesalers
    • Buy cheap 14AWG Thermocouple Wire / Chromel Alumel Wire With Oxidized Surface IEC Class 1 from wholesalers
    • Buy cheap 14AWG Thermocouple Wire / Chromel Alumel Wire With Oxidized Surface IEC Class 1 from wholesalers
    • Buy cheap 14AWG Thermocouple Wire / Chromel Alumel Wire With Oxidized Surface IEC Class 1 from wholesalers
    • Buy cheap 14AWG Thermocouple Wire / Chromel Alumel Wire With Oxidized Surface IEC Class 1 from wholesalers

    14AWG Thermocouple Wire / Chromel Alumel Wire With Oxidized Surface IEC Class 1

    Ask Lasest Price
    Brand Name : Tankii
    Model Number : Chromel Alumel
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Paypal, Western Union, MoneyGram,
    Supply Ability : 1000Ton per year
    Delivery Time : 5-7 days after getting the payment
    • Product Details
    • Company Profile

    14AWG Thermocouple Wire / Chromel Alumel Wire With Oxidized Surface IEC Class 1

    14AWG Thermocouple wire Chromel Alumel Wire With Oxidized Surface IEC Class 1


    Quick Description


    A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.


    14AWG Thermocouple wire Chromel Alumel Wire With Oxidized Surface IEC Class 1


    Characteristics:

    The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields,

    such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.


    Our products conform to the standards of IEC584-1 and IEC-2.

    Thermocouple strips, thermocouple connectors are available.
    Application Range of thermocouple wire:
    1. Aerospace and Composites
    2. Aluminum industry
    3. Food and Pharmaceutical
    4. Forgings
    5. Glass, Ceramics, Clay Tiles, Bricks
    6. Heat Treating
    7. Petroleum, Downhole Oil & Gas
    8. Sensor Manufacturing
    9. Steel industry
    10. Utilities Power Generation
    14AWG Thermocouple wire Chromel Alumel Wire With Oxidized Surface IEC Class 1
    Thermocouple Type and Temperature Range

    Thermocouple type and index


    Measurement Range

    Type


    Index



    PtRh30-PtRh6

    B600~1700

    PtRh13-Pt

    R0~1600

    PtRh10-Pt

    S0~1600

    NiCr-NiSi

    K-200~1300

    NiCr-CuNi (constantan)

    E-200~900

    Fe-CuNi (constantan)

    J-40~750

    Cu-CuNi (constantan)

    T-200~350

    NiCrSi-NiSi

    N-200~1300

    The allowable grade and Tolerance are obtained at 0℃

    Thermocouple

    Type

    Grade

    Temperature range

    Allowable Tolerance /℃
    Type B600~1700±0.25% t
    600~800±4
    800~1700±0.5%t
    Type R(S)0~1100±1
    1100~1600±[1+(t-1100) ×0.3%]
    0~600±1.5
    600~1600±0.25% t
    Type K and Type N-40~1100±1.5℃ or ±0.4%t
    -40~1300±2.5℃ or ±0.75%t
    -200~40±2.5℃ or ±1.5%t
    Type E-40~1100±1.5℃ or ±0.4%t
    -40~1300±2.5℃ or ±0.75%t
    -200~40±2.5℃ or ±1.5%t
    Type J-40~750±1.5℃ or ±0.4%t
    -40~750±2.5℃ or ±0.75%t
    Type T-40~350±0.5℃ or ±0.4%t
    -40~350±1.0℃ or ±0.75%t
    -200~40±1.0℃ or ±1.5%t

    Application:

    Solid pin for male connector


    Delivery and Packing of thermocouple wire:
    1. Packaging Details : 500m/1000m per roll with plastic film wrapped and carton package.
    2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.
    3. Delivery: By express, air, sea as per thermocouple wire qty
    14AWG Thermocouple wire Chromel Alumel Wire With Oxidized Surface IEC Class 1
    Welcome to call me or email to me for more information on thermocouple wire.
