High speed automatic syrup oral eye drop ampoule and vial filling
line for 100ml syrup
- Kind of bottle*
| - Round hard plastic/glass bottle
|
- Bottle size*
| - Min. Ø 40mm Max. Ø80mm
|
- Speed
| - 30~100bpm
|
- Pure compressed air require
| - 150L/min, 3~4bar
|
- Pure water require
| - 1000L/hour, 2~3bar
|
- Filter
| - PP material, precision 0.1um
|
- Power*
| - 220V 50/60Hz 1.2kw
|
- Machine size mm
| - Length 1400, width 1000, height 1300
|
- Conveyor length mm
| - 2000
|
- Machine weight:
| - 800kgs
|
- Kind of bottle
| - Various kinds of plastic/glass bottle
|
- Bottle size*
| - Min. Ø 20mm Max. Ø80mm
|
- Filing nozzles
| - 12 heads
|
- Speed
| - 80~100bpm on 100ml
|
- Alternative Filling volume*
| - 15~60ml, 30~125ml, 50~250ml, 200~500ml
|
- Filling accuracy
| - ±1%
|
- Power*
| - 220V 50/60Hz 1.2kw
|
- Compress air require
| - 30L/min, 6~8bar
|
- Machine size mm
| - Length 2500, width 1000, height 1800
|
- Machine weight:
| - 900kgs
|
- Kind of bottle
| - Various kinds of plastic/glass bottle
|
- Kind of cap alternative
| - Screw-on cap, alum. cap, press-on cap
|
- Bottle size*
| - Min. Ø 20mm Max. Ø80mm
|
- Cap size*
| - Ø20~50mm
|
- Nos. of Capping head
| - 8
|
- Speed
| - Max. 150bpm
|
- Power*
| - 220V 50/60Hz 2.0kw
|
- Compress air require
| - 5L/min, 4~6bar
|
- Machine size mm
| - Length 3000, width 1200, height 1800
|
- Machine weight:
| - 1000kgs
|

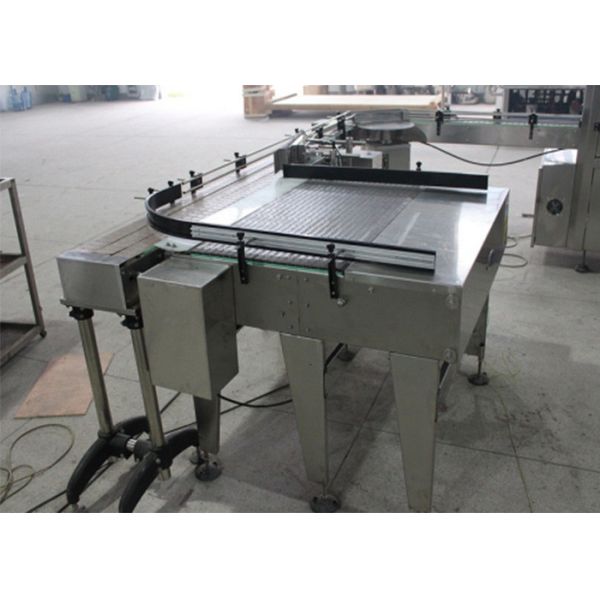

1. VSP In-feed Conveyor Table
Frame
• All Stainless Steel Construction to meet the GMP Standard
Specifications
• Conveyor Length: 2500mm
• Table size: 1100x1000x900mm
• Turning disk motor power: 1.0kw
• Variable Speed Control for motor
Capacity
• Production Capacity: 100-300 bottles per min.
• Production Capacity Speed can be adjusted.
Dimensions & Weight
• Machine dimension (L x W x H): 2500 x1400 x 1000mm
• Main Machine weight: 200kg
Power Source
• AC220V, 50Hz, 1Phase
2. XP-300 Automatic Bottle Rinser:
General Features:
XP-300 Automatic Bottle Rinser for the application of water and air
rinsing to clean plastic or glass bottles before filling. The
machine is composed by a short conveyor, bottle index wheel, water
collect tank, bottle snap roller, water/air filter, water/air
blowing system. The bottle loading/unloading through loading/
unloading turntable (alternative Ø620mm or Ø900mm), or directly
from an production line.
Technical Features:
* Other sizes on request
3. YG50/1000-12 Automatic Volumetric Filling Machine:
General Features:
YG50/1000 Automatic Volumetric filling machine for the application
of light liquid filling into plastic or glass bottles. The machine
is composed by a conveyor, SS316L volumetric piston pump,
top-bottom filling nozzles, liquid buffer tank and bottle indexing
system. The bottle loading/unloading through loading/unloading
turntable (alternative Ø620mm or Ø900mm), or directly from an
production line.
Technical Features:
* Other sizes on request
4. XG/8 Rotary Capping Machine Attached Basic parts:
General Features:
XG/8 Automatic rotary capping machine for the application of
plastic/glass bottles capping. The machine is composed by a
conveyor, bottle index wheel, cap unscrambler, cap chute
&placer, screwing capper. The bottle loading/unloading through
conveyor manually, or automatic directly from an production line.
It is built to meet accordance to GMP regulation.
Technical Features:
* Other sizes on request
5. GP900 Transfer Turntable
Frame
• All Stainless Steel Construction to meet the GMP Standard
Specifications
• Feeding disk speed less control system
• Diameter of disk: option 900mm
• Turning disk motor power: 200W
• Variable Speed Control for motor
Capacity
• Production Capacity: 60-120 bottles per min.
• Production Capacity Speed can be adjusted.
Dimensions & Weight
• Machine dimension (L x W x H): 990 x 990 x 1200mm
• Main Machine weight: 100kg
Power Source
• AC220V, 50Hz, 1 Phase
6. DJ Light Inspector dual station
Technical Parameter:
Dual working station: content and out-looking inspected by eye
Conveyor: 3m, speed is adjustable
Power supply: 220V 50Hz 1PH
Power consumed: 300w
Dimension: 3000mm x 410mm x 1600mm
