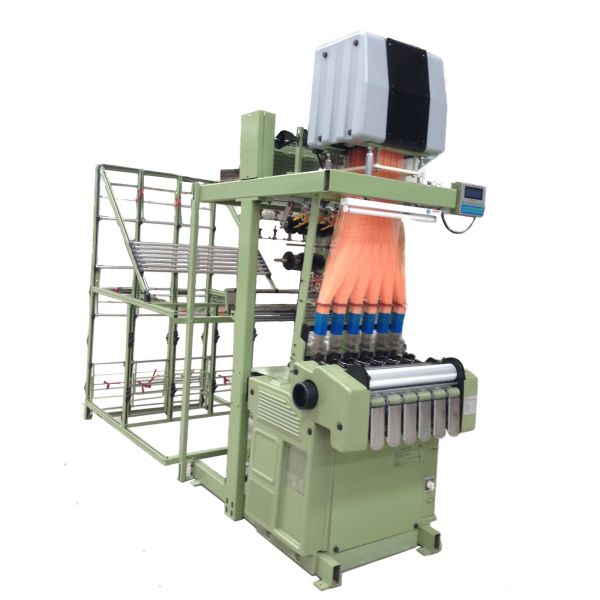

This jacquard loom is applicable to make various types of elastic
or non-elastic narrow fabric and cloth with jacquard effect,such as
underwear elastic ,backpacks tape, shoulder belt, ribbons,etc
| Model | NO. of belt(piece) | Max. reed width(mm) | Frame(fin) | Chain link repeat(pin) | Motor Power(HP) | Speed |
| 6/55/384 | 6 | 55 | 8 | 8-48 | 2 | 850-1200 |
Machine features
«This machine adopts new electronic jacquard and computerized
embroidery prog-ramming system which is intuitive, shortcut and
easy to operate.
«Electromagnetic valve and its drive boards are in separated, which
is easy to maintenance. The Electromagnetic valve mold group is
sealed with composite materials and only needs small amount of
energy, and does not require maintenance.To achieve the high speed
running necessary for manufacturing, two steel beadbearings share
the load. Fast connector is used between the bearing and
jacquardrope group, as contributes to easy dismantlement.
«Head transmission belt and bearing are imported from Italy and
Japan, And thejacquard rope and palm fibre rubber are originally
from Swiss and the quality isguaranteed. The reasonable and precise
transmission design ensures high speedrunning of machine.
«The opening of machine body shedding frame works with head and
there are threetypes of head openings with various width to suit
weaving requirements. The designis precise, and commissioning
becomes simple and easy.
«Electromagnetic valve lifting tool and transmission belt adopt
double external mode.The lifting tool and belt are connected in
bevel pressing mode, which does not damagethe belt and makes more
reasonable structure.
